FOTRIC TD2e Acoustic Imager Camera

Name: FOTRIC TD2e Acoustic Imager Camera
Rating: 4.67 (6 reviews)

FOTRIC TD2e Acoustic Imager Camera, 64 MEMS Microphones, 0.3–60m Working Distance, 2–100kHz Frequency Range, 58°×45° FOV, for Industrial Leak Detection & Partial Discharge Inspection

Regular price: $999.00
Sale price: $999.00
Regular price

Free shipping. Discounts calculated at checkout.

Package:

Standard Unit Complete Kit

Product variants:

Quantity:

Advanced Acoustic Imaging Technology

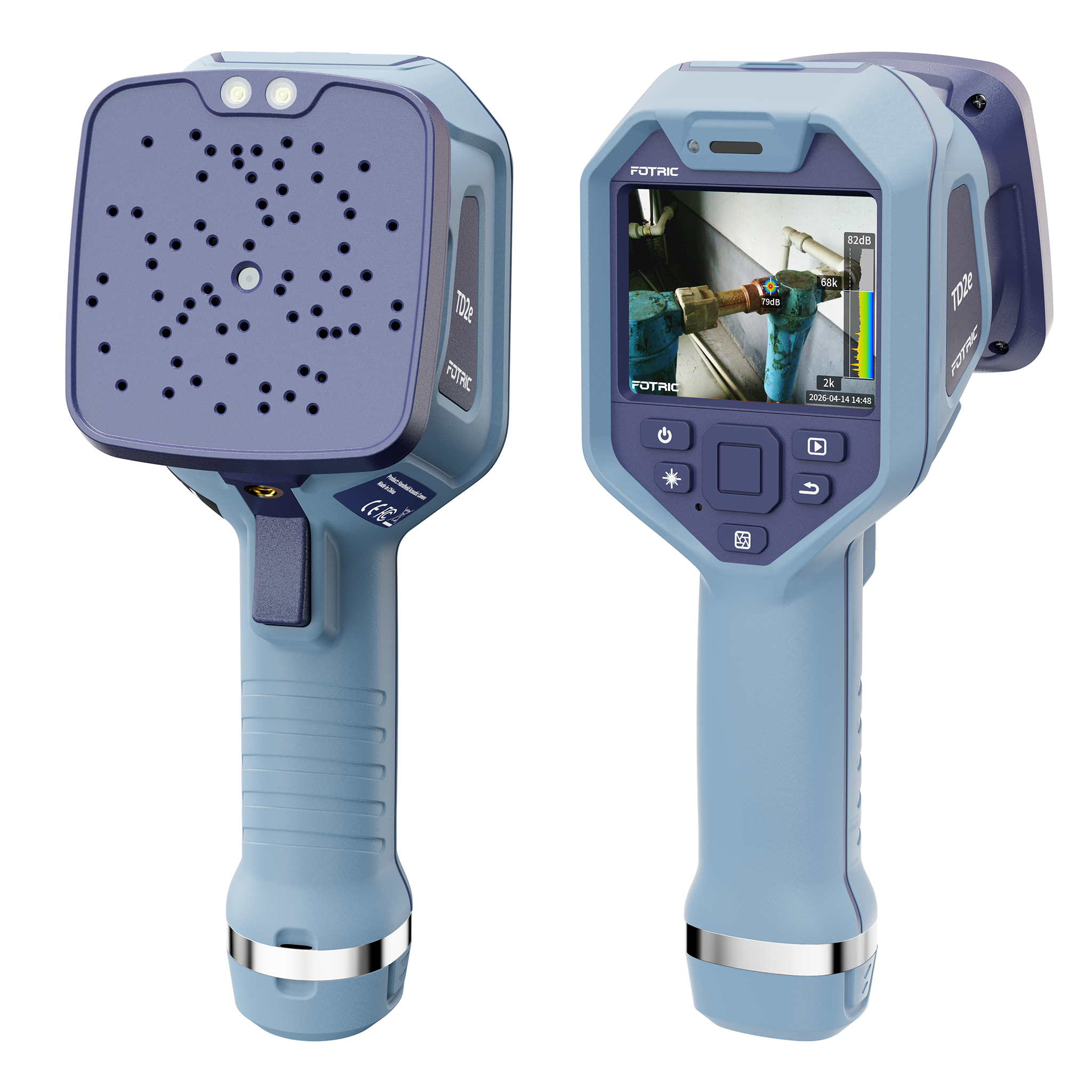

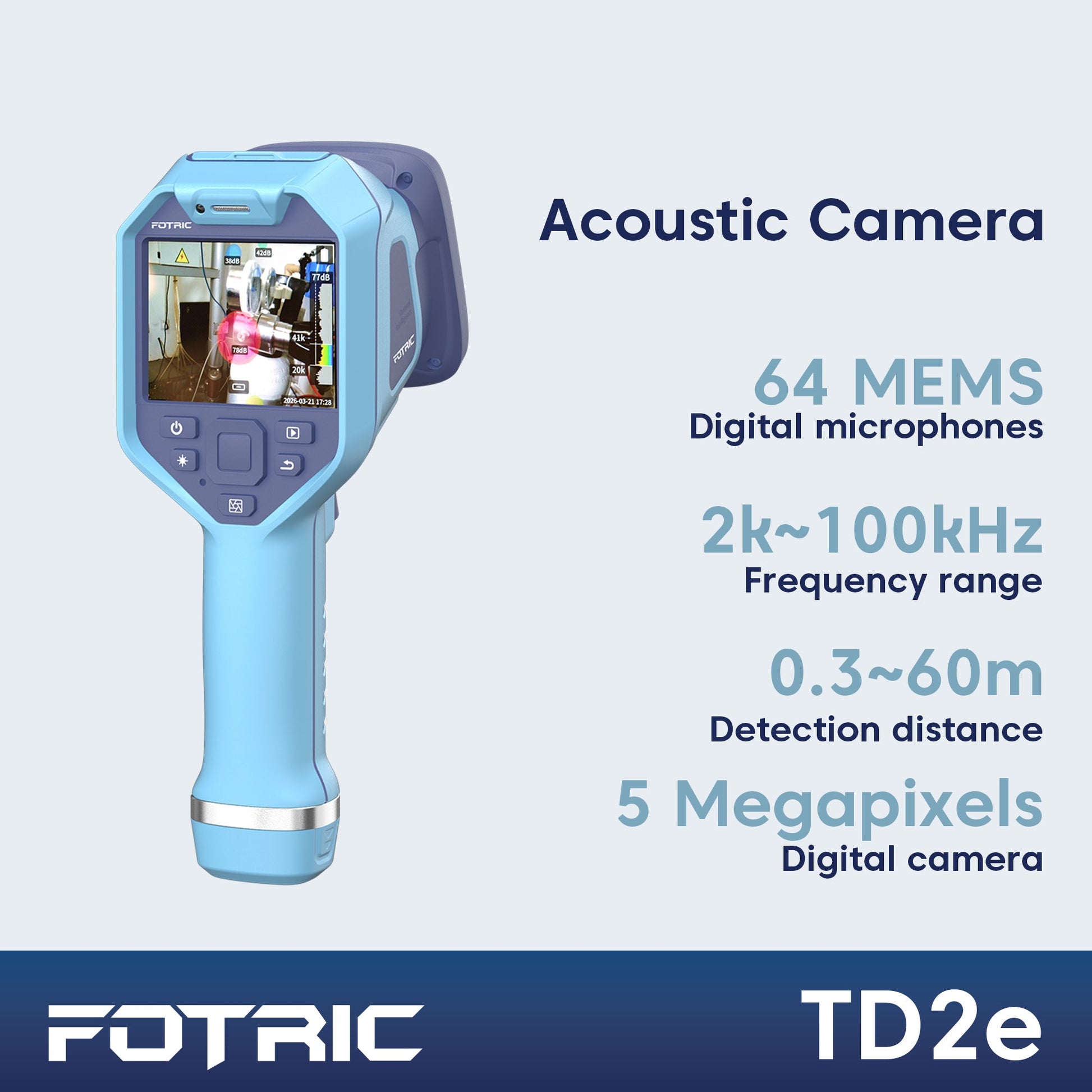

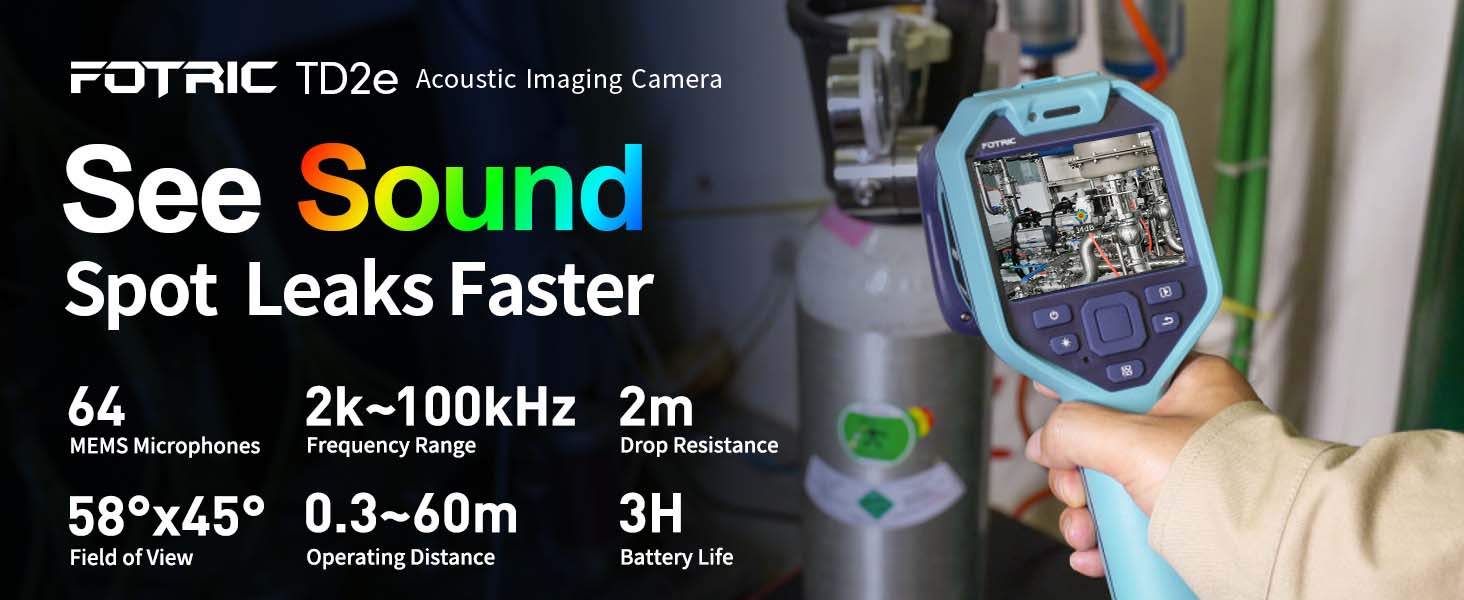

Equipped with 64 high-sensitivity MEMS digital microphones and a 58° × 45° field of view (FOV) for accurate sound source localization. Covers a wide frequency range from 2kHz to 100kHz, with a working distance of 0.3~60m, ideal for detecting both audible and ultrasonic leaks, partial discharge and mechanical anomalies. Also features a 5-megapixel industrial digital camera for detailed visual reference.
Quickly Locate Various Industrial Leaks & Vibration Problems

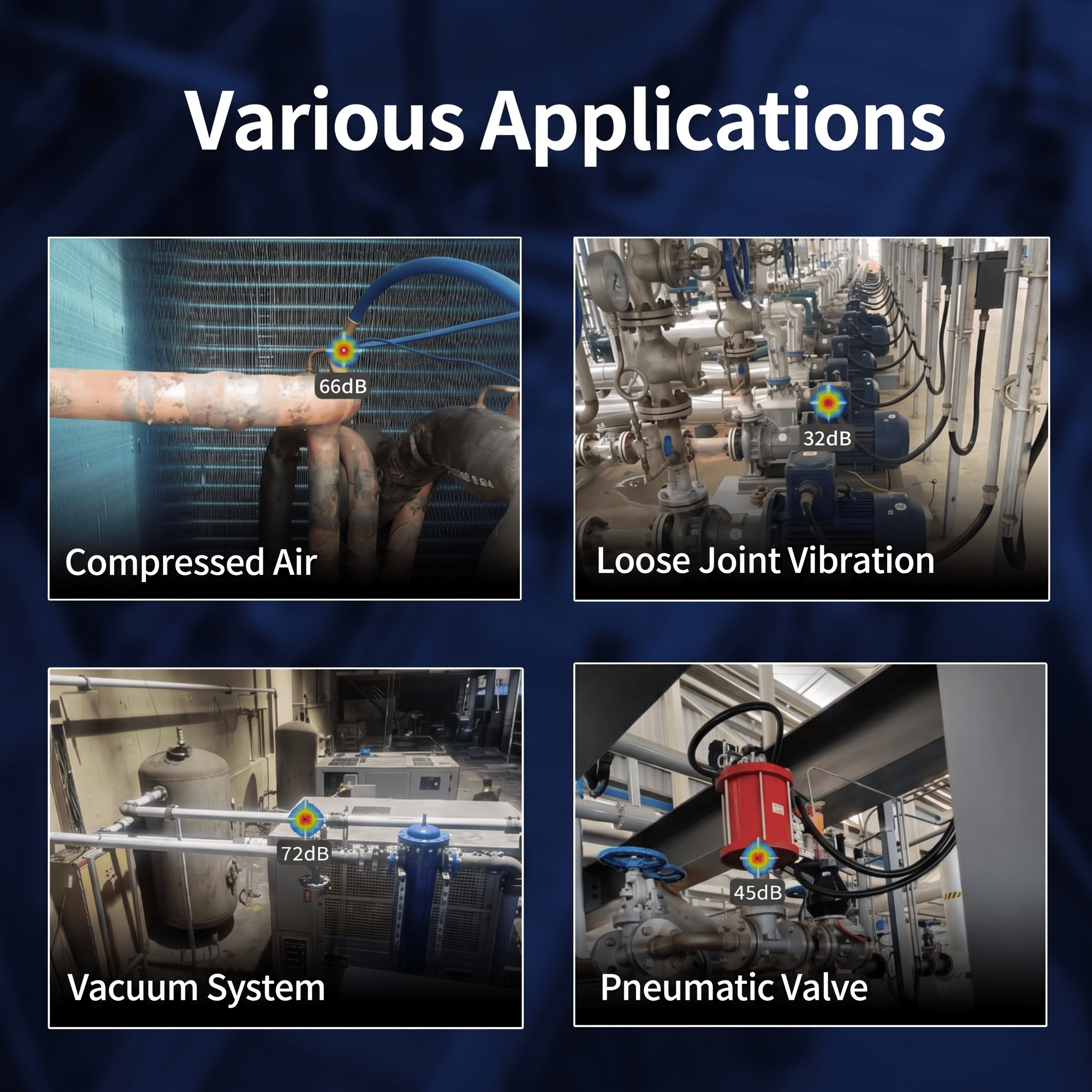

FOTRIC TD2e acoustic imaging camera enables compressed air leak detection, vacuum leak identification, pneumatic valve leakage check, loose joint vibration detection and seal integrity verification — all without contact or downtime. Instantly visualize abnormal sound sources in real time to improve maintenance efficiency and prevent costly failures.
Acoustic Image Focus & Sound Pressure Level Measurement

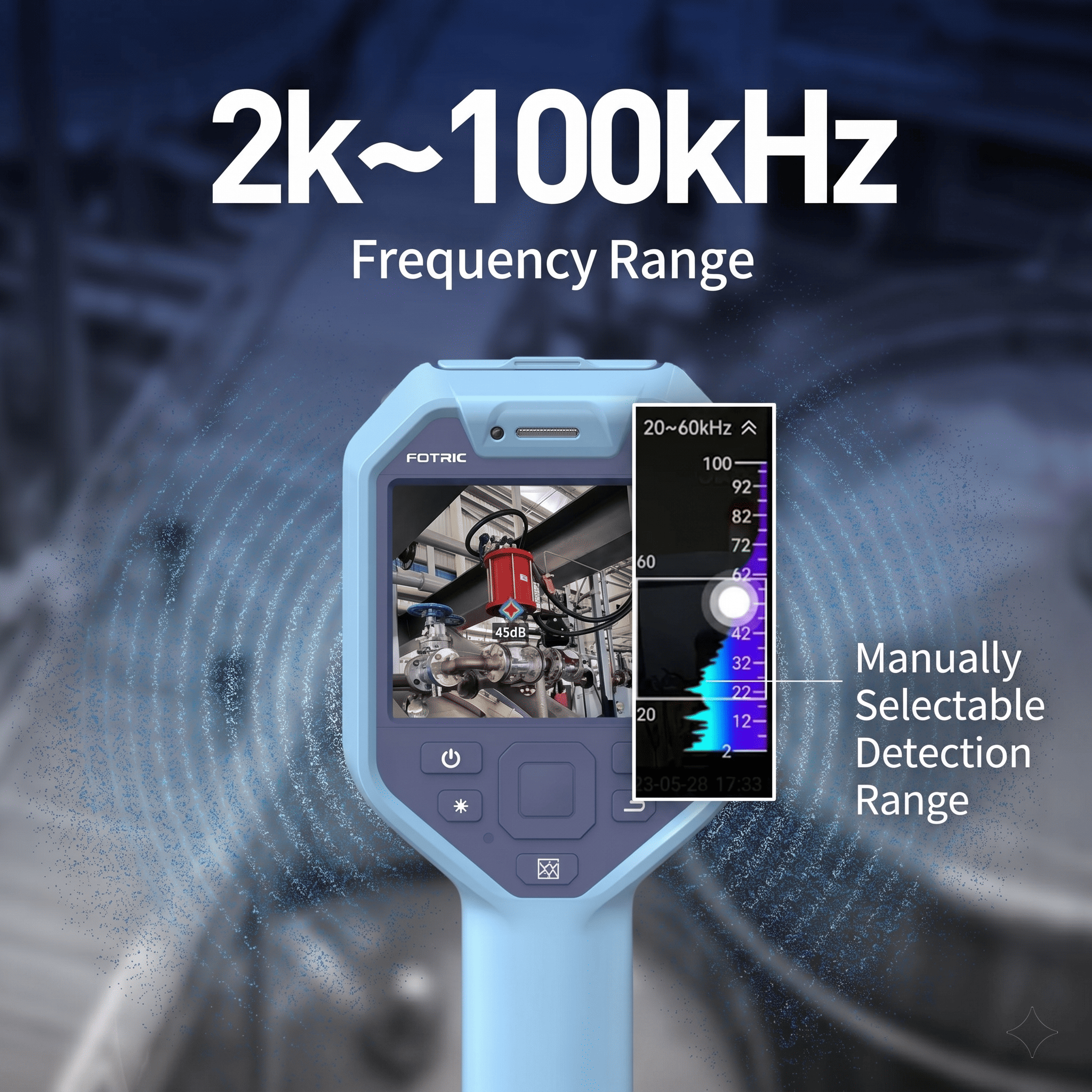

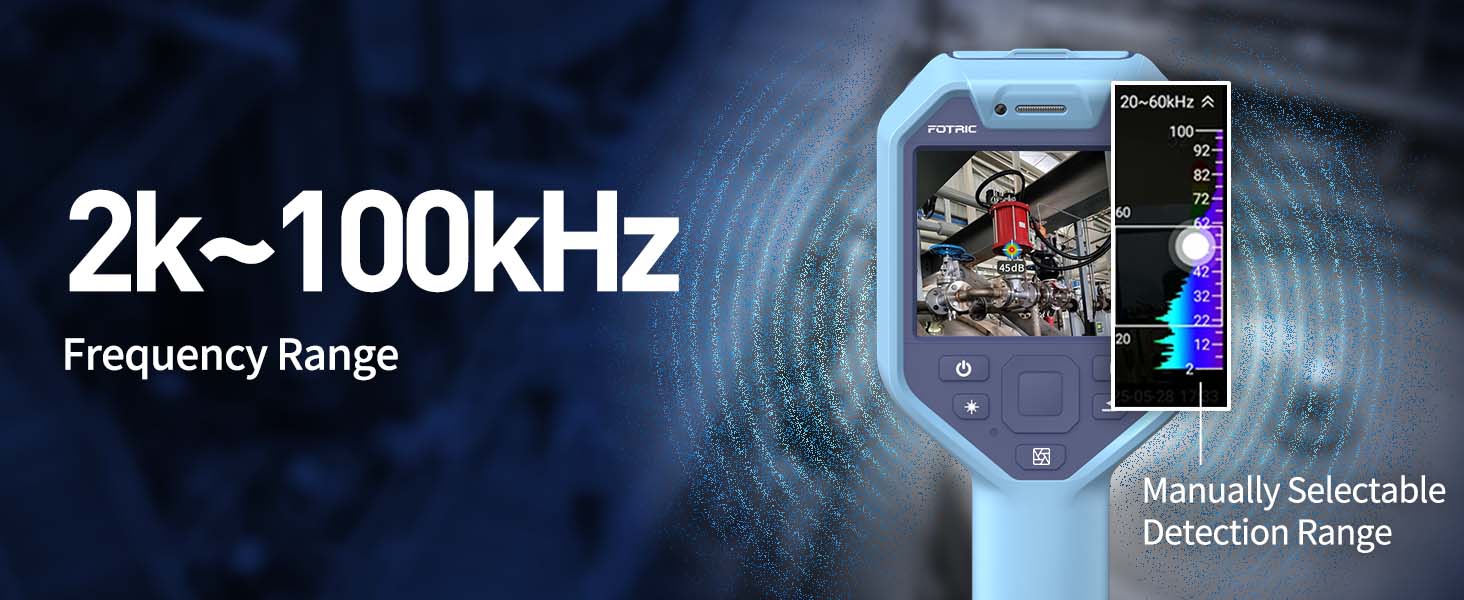

Combines adaptive dynamic noise reduction and micro-detection algorithms to achieve focused localization of sound sources. Supports manual frequency adjustment and peak frequency display, with real-time dB-level data output paired with acoustic images, well-suited for locating and diagnosing a wide range of industrial sound sources.

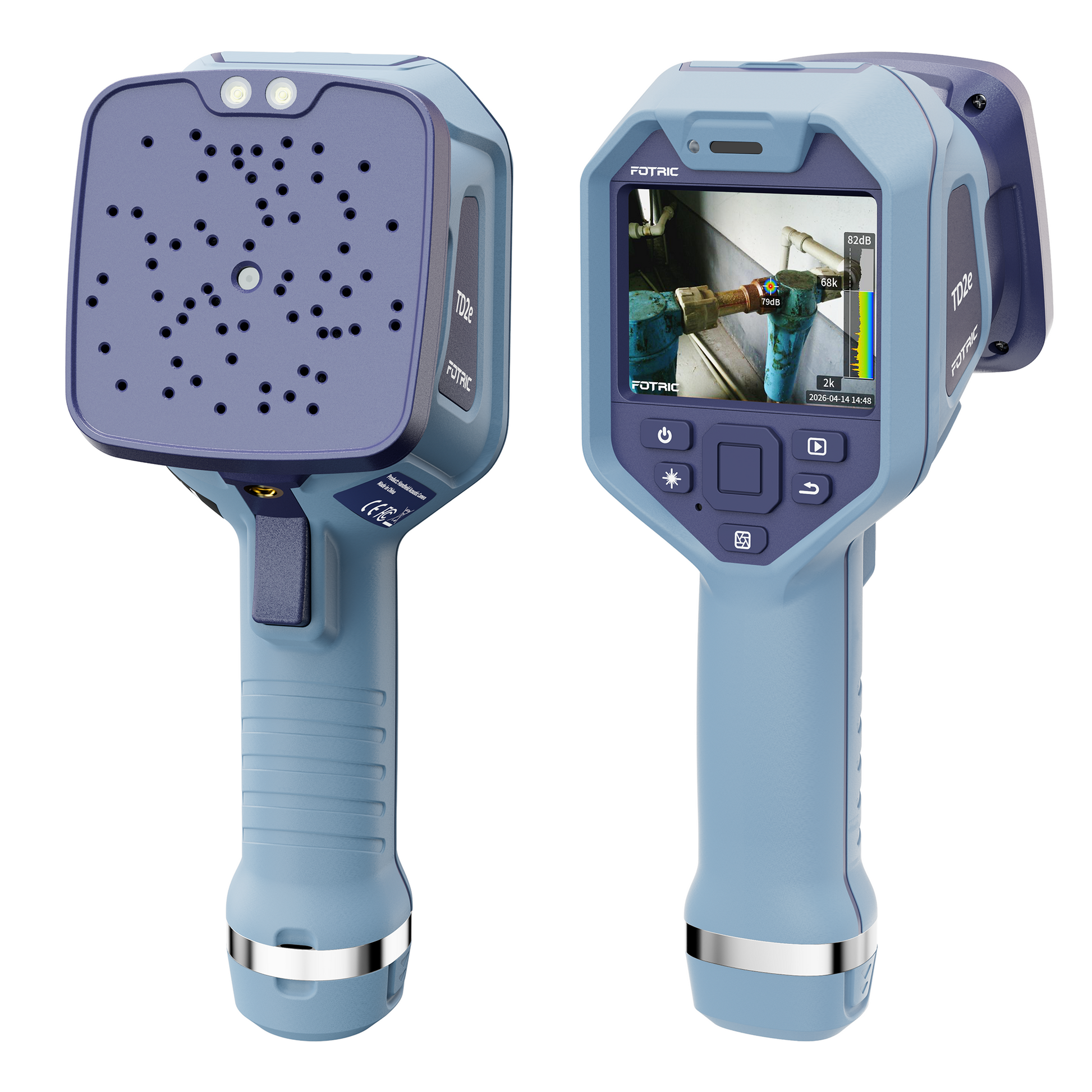

High-Resolution Touch Screen & Multiple Display Modes

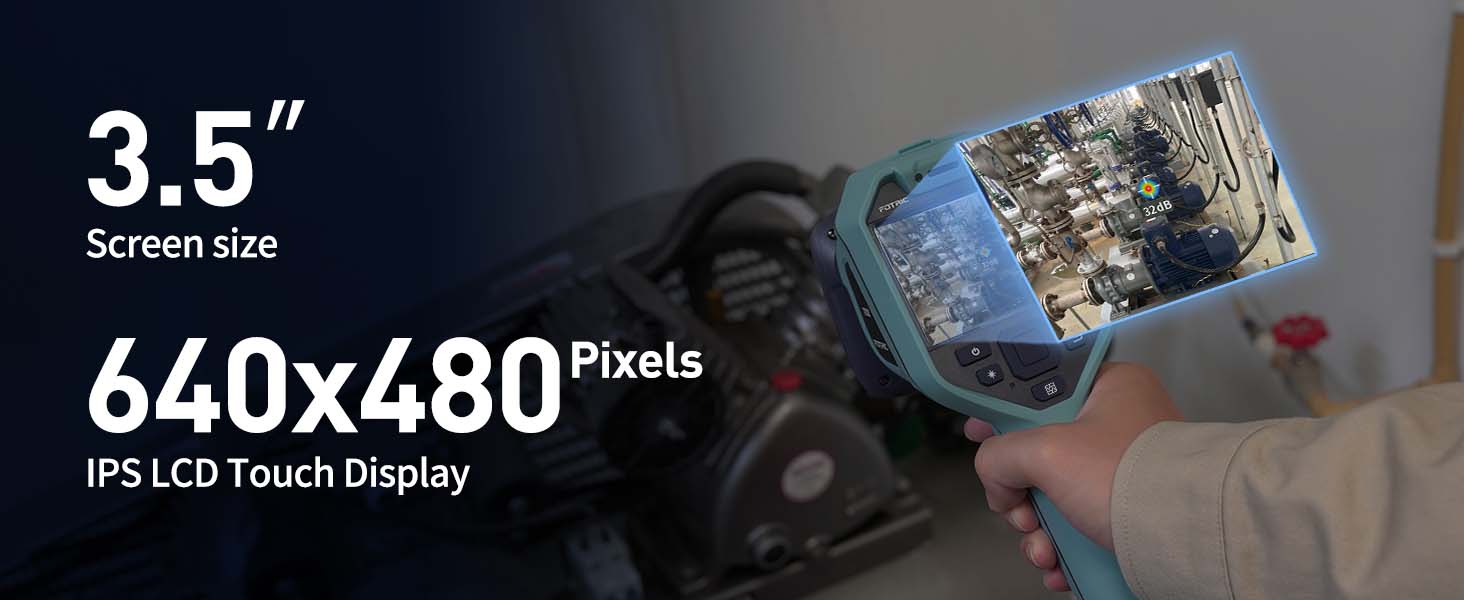

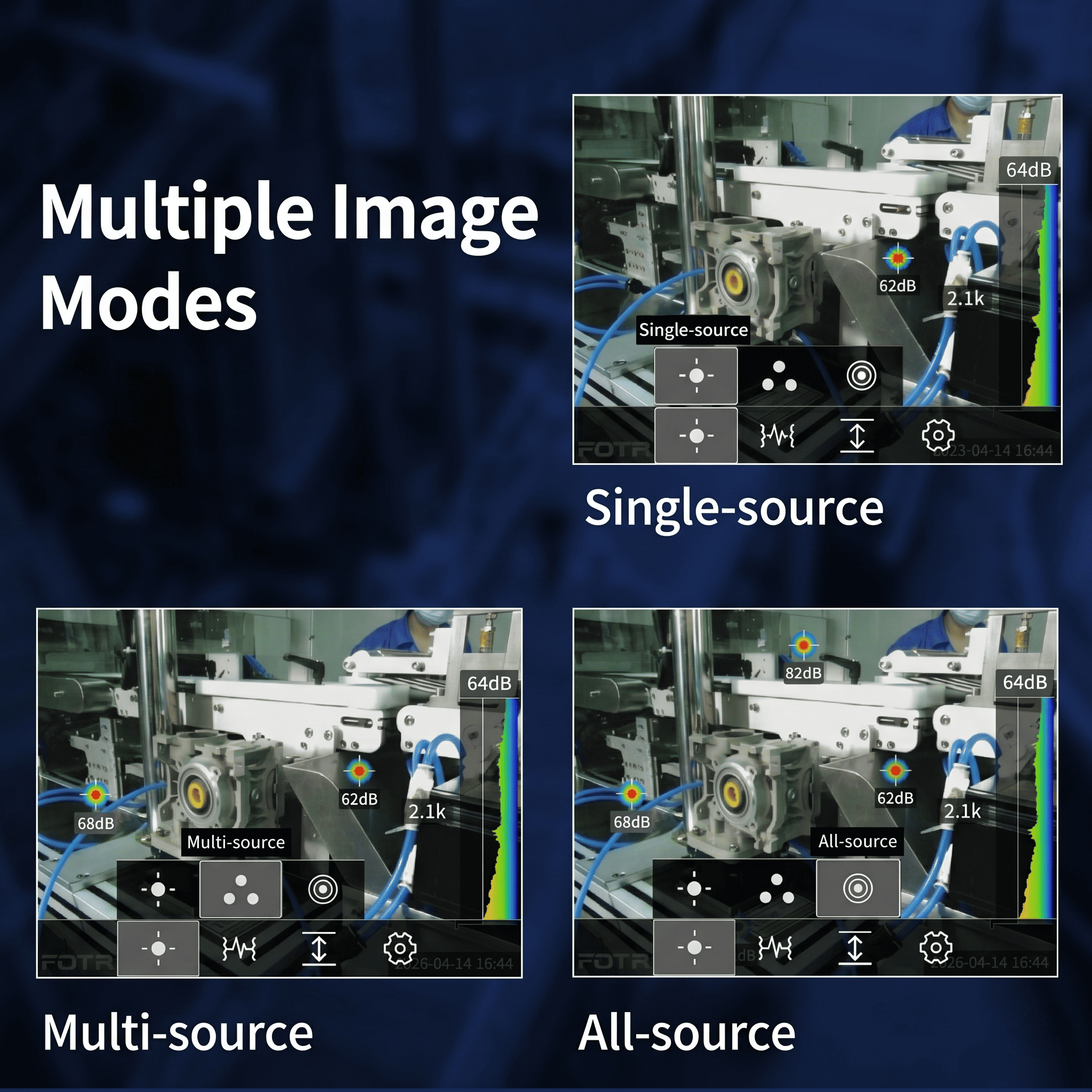

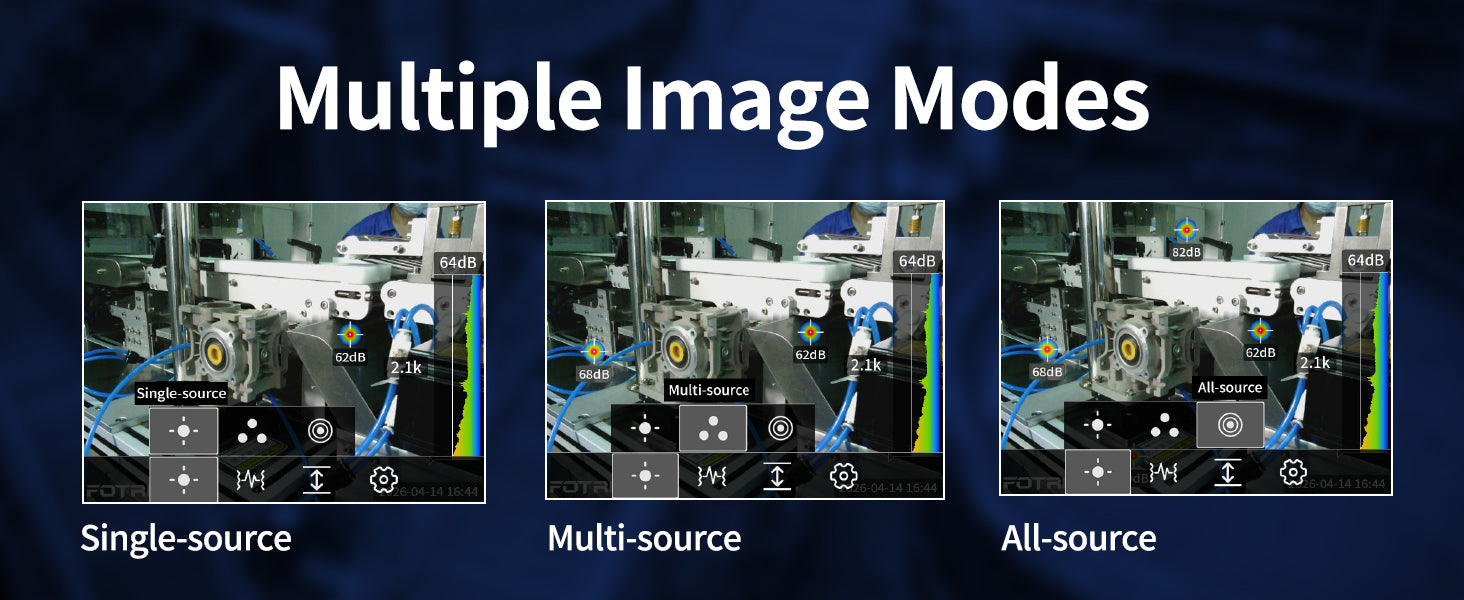

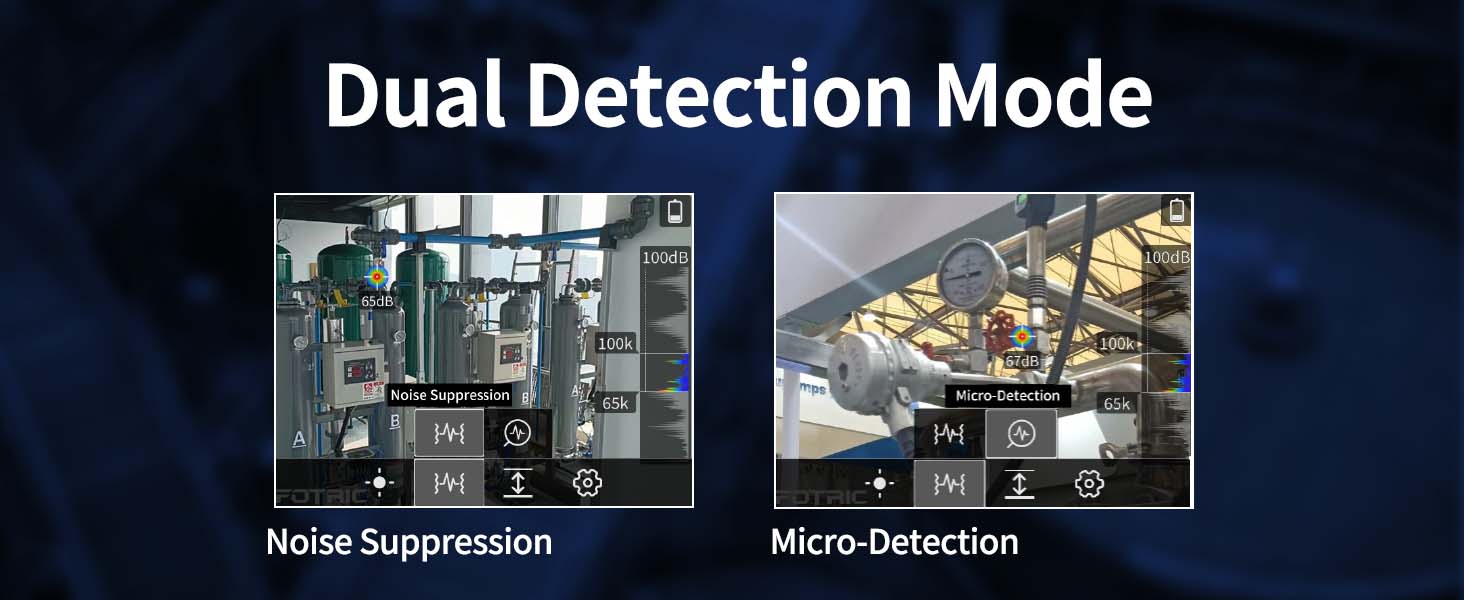

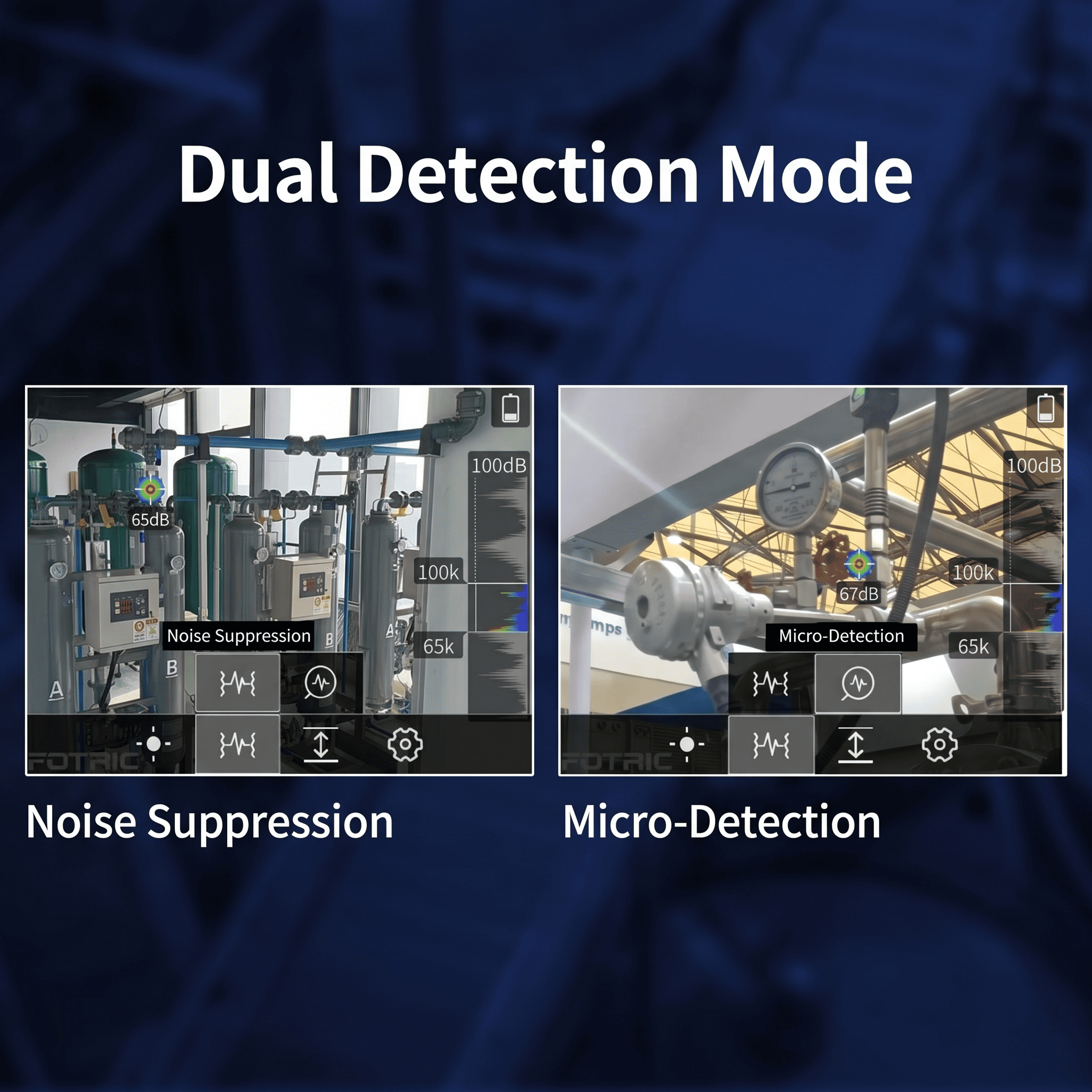

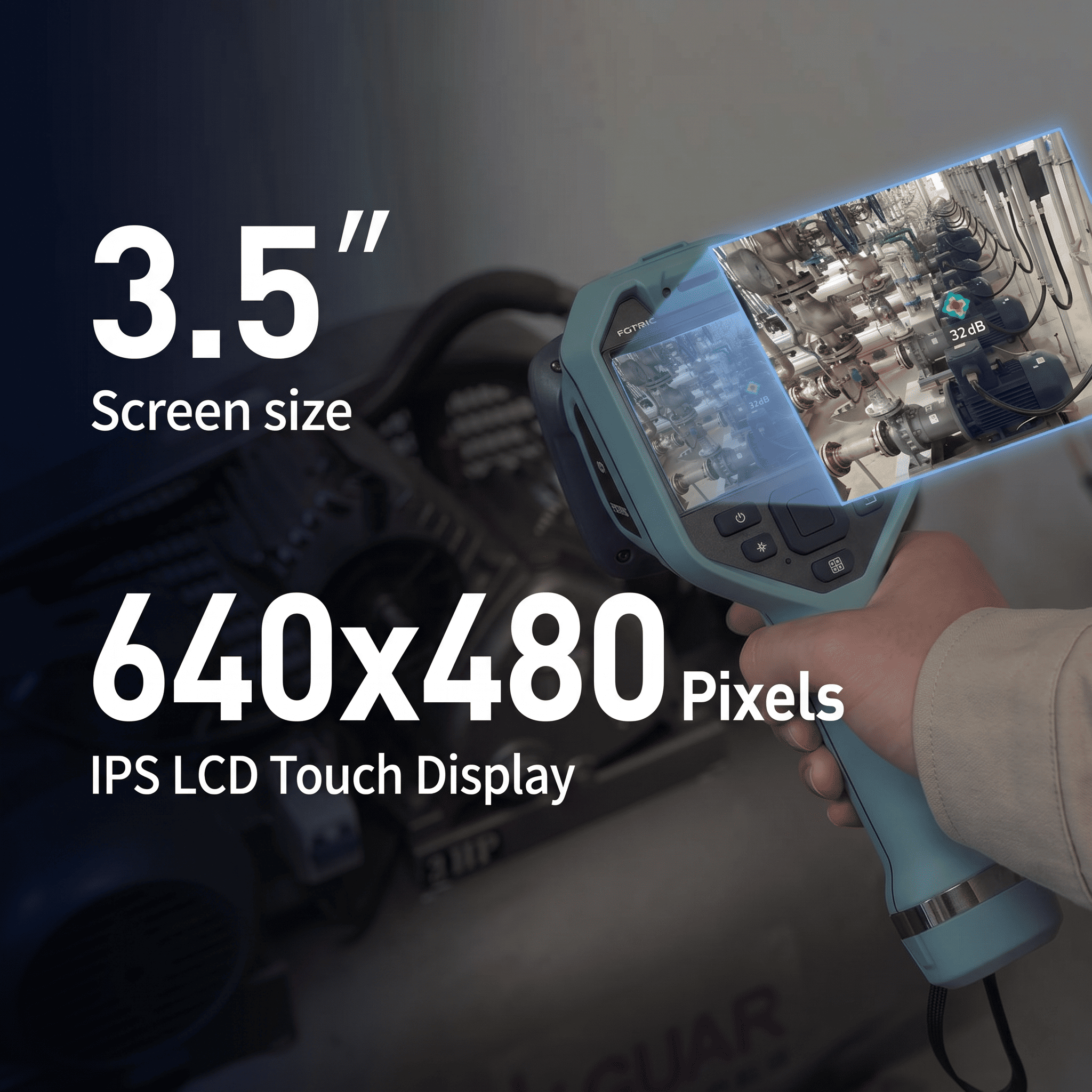

The 3.5" high-resolution IPS touchscreen (640 × 480) with protective cover glass supports single-source, multi-source and all-source display modes. Equipped with noise suppression and micro-detection dual modes, it can overlay sound pressure data on visible-light images for faster, more intuitive diagnostics.
Portable & Durable Design
Lightweight and rugged with IP54 rating and 2-meter drop resistance. The FOTRIC TD2e acoustic imager includes a 5000mAh field-replaceable rechargeable battery for ≥3 hours of continuous operation, ideal for field inspections in industrial, HVAC, manufacturing and energy sectors.

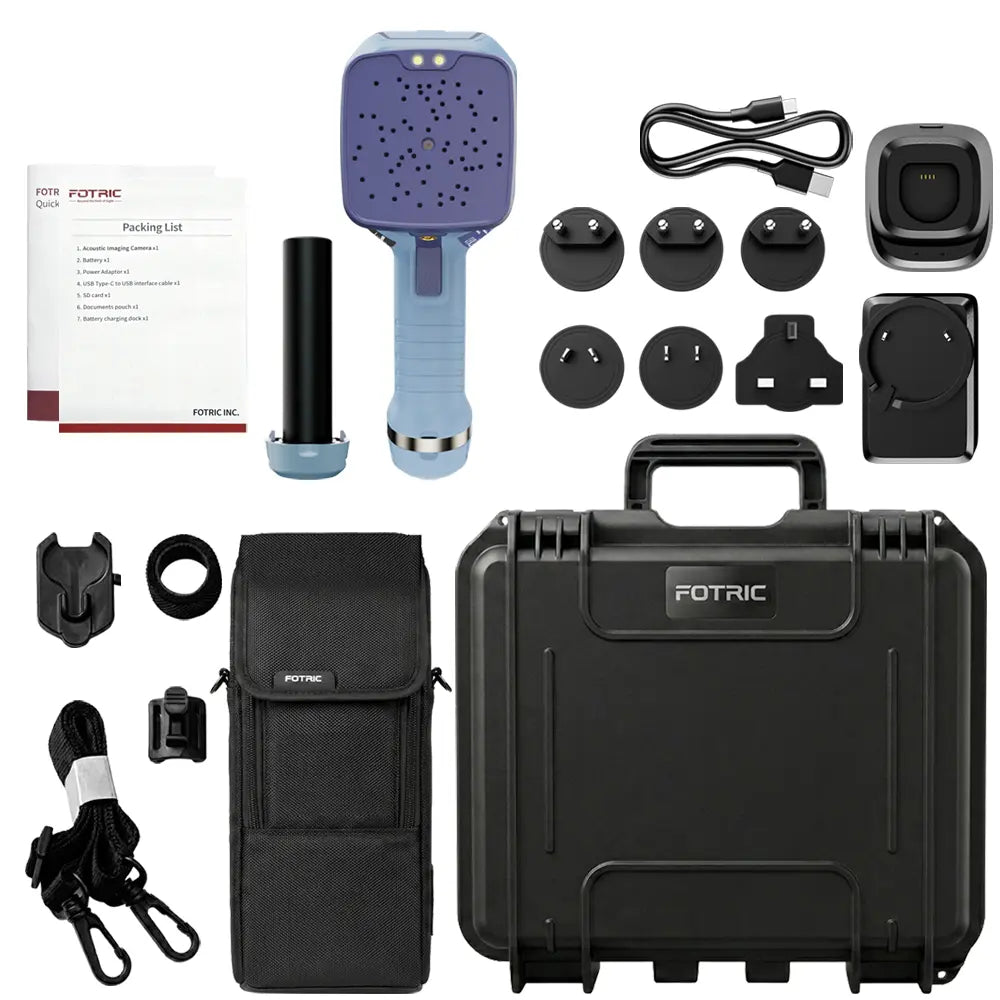

Complete Kit Package Contents

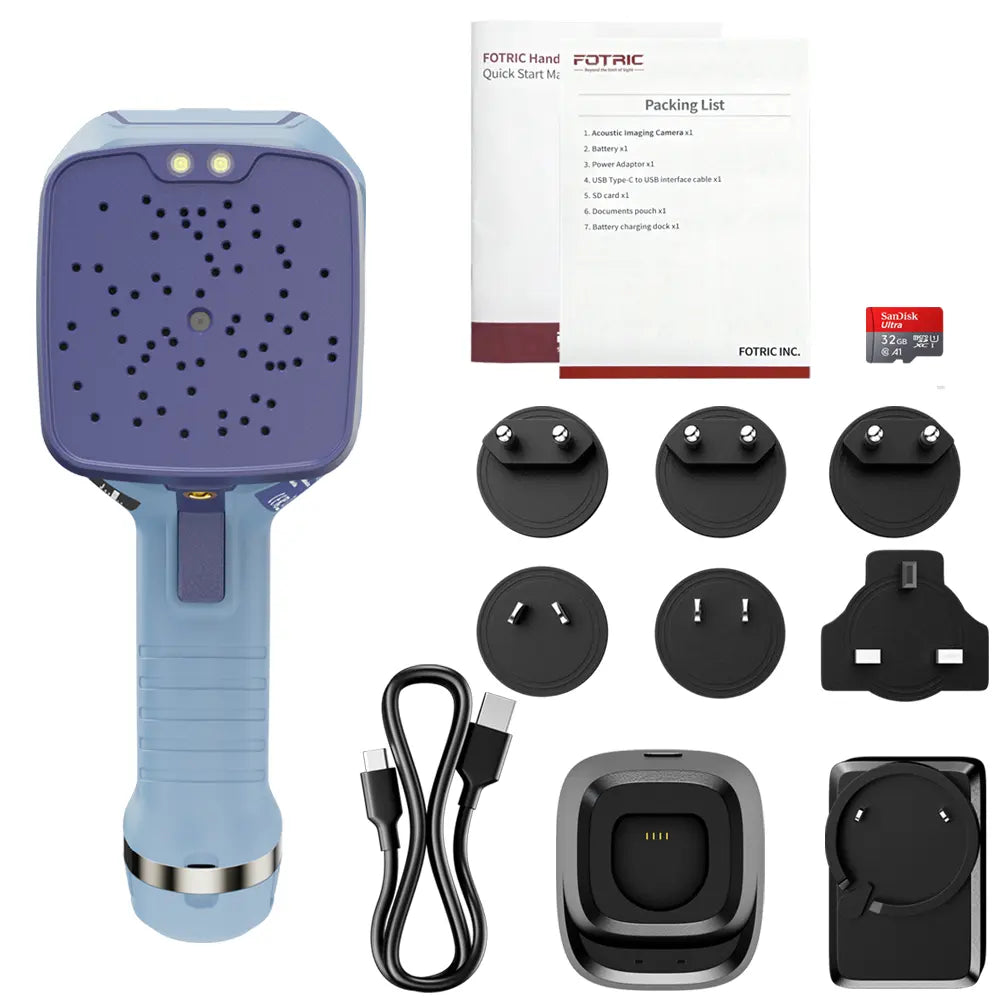

1 FOTRIC TD2e Acoustic Imaging Camera, 2 rechargeable lithium batteries, 1 charging dock, 1 power adapter, 1 USB Type-C to USB cable, 1 32GB TF card, 1 tool holster, 1 quick start guide, 1 packing list, 1 portable soft bag and 1 hard carrying case.

Free Shipping

30-Day Return Policy

1-Year Warranty

24/7 Customer Support

FOTRIC TD2e Acoustic Imager Camera

$999.00

Description Specifications FAQs Reviews

▶ Watch Now

What's in the box

Specifications

Microphone channels

64 MEMS Digital Microphone

Acoustic image field of view (FOV)

58° *45°

Sound sampling rate

200kHz

Image Mode

Single-source, Multi-source, All-source

Working distance

0.3~60m

Positioning frequency range

2k–100kHz

TD2e Acoustic Imager Camera User Manual (PDF)

FAQs

Need more than just FAQs? Access our complete library of user manuals, software guides, and video tutorials.

View All Support Resources

How does the TD2e acoustic imaging camera work?

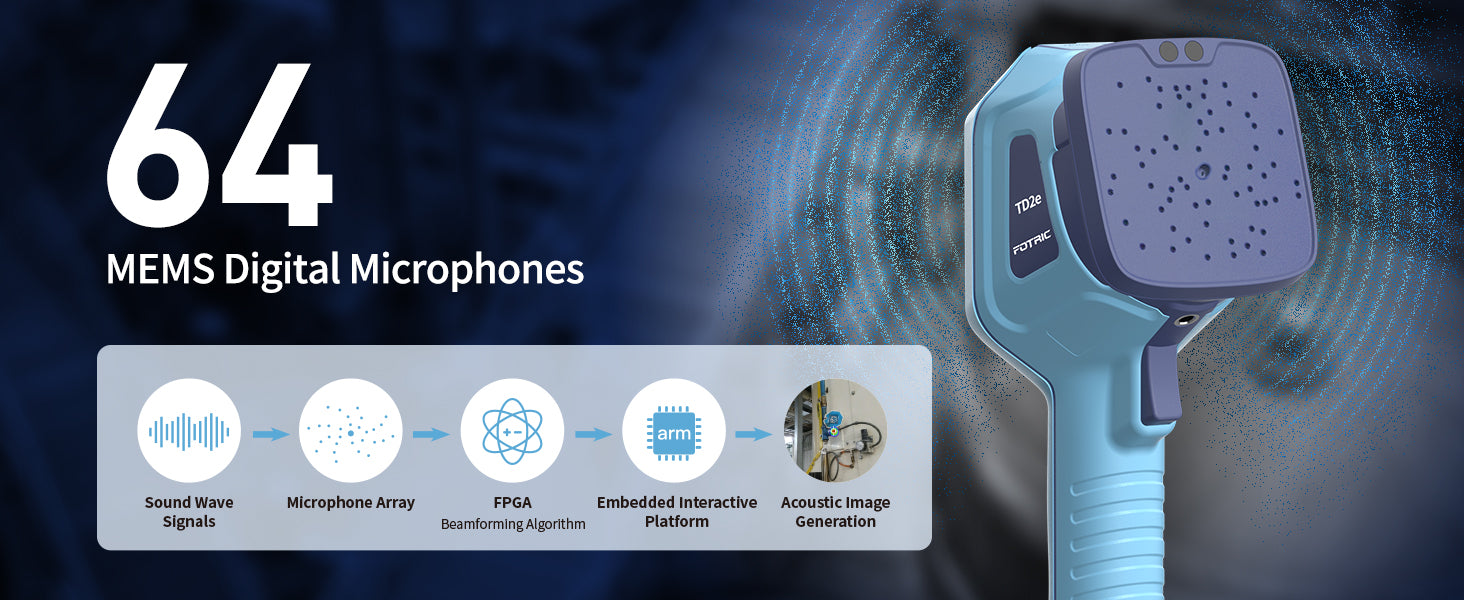

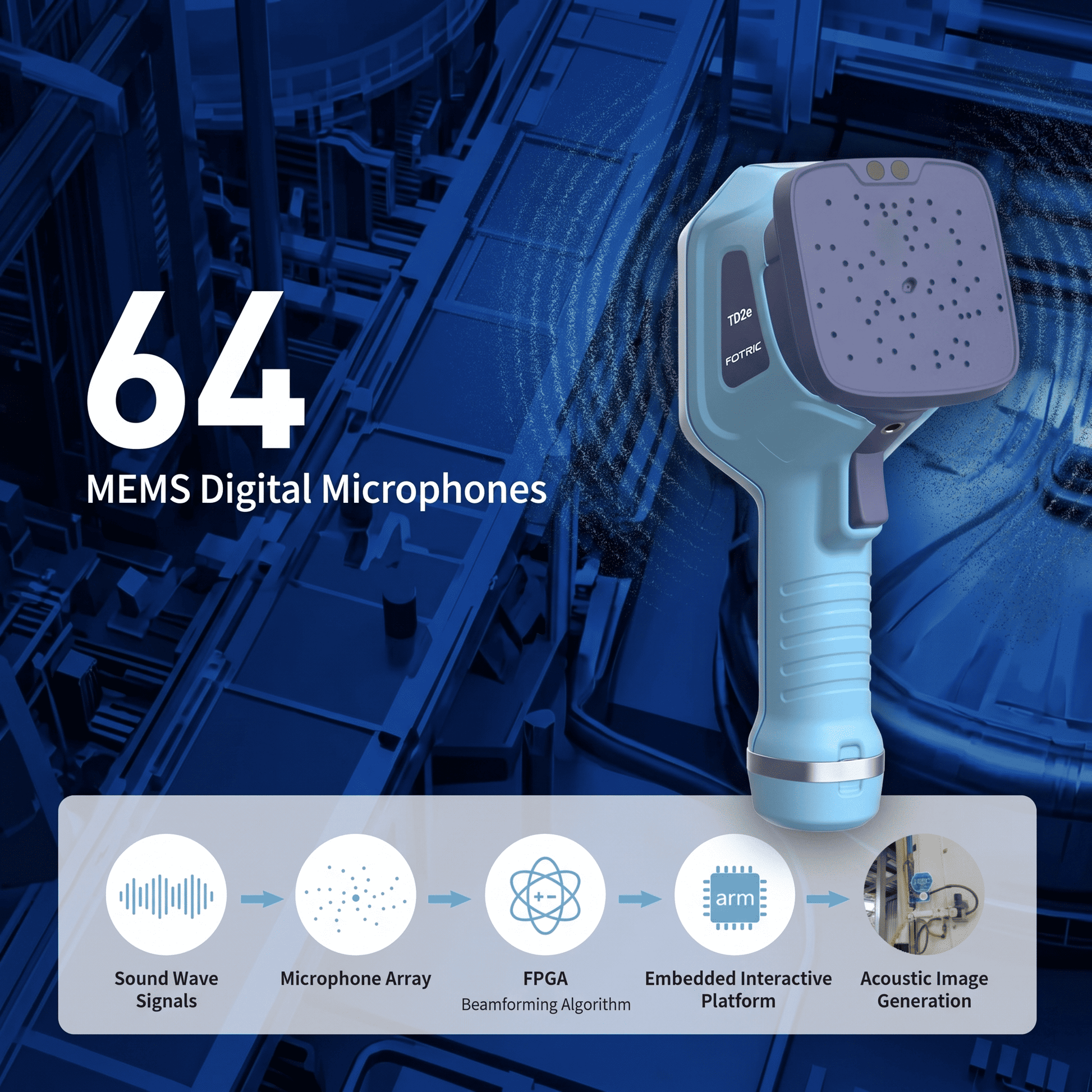

The TD2e uses an array of 64 MEMS microphones to capture sound from multiple directions simultaneously. A beamforming algorithm focuses on sound sources from specific directions, filtering out environmental noise. The device then displays the sound source location as a colorful heatmap overlaid on the live camera image, allowing you to "see" where sounds are coming from — including ultrasonic sounds beyond human hearing.

What kind of leaks and faults can the TD2e detect?

The TD2e can detect:

Compressed air system leaks — including pneumatic valves, cylinders, and fittings
Gas leaks — pressurized gas escaping from pipelines
Vacuum system leaks — negative pressure leaks
Loose joint vibration — abnormal high-frequency sounds from loose components during operation

Its 2kHz to 100kHz frequency range covers both audible and ultrasonic signals produced by these faults.

What is the detection range of the TD2e?

The effective detection range is 0.3m to 60m.

Sounds closer than 0.3m may still be detected, but near-field effects can reduce positioning accuracy. Under certain conditions, sound sources with very high sound pressure levels may be detected beyond 60m.

Can the TD2e work in noisy industrial environments?

Yes. The TD2e is designed for industrial use. In noisy environments, use Noise Suppression Mode to filter out background noise and maintain stable acoustic imaging. You can also adjust the frequency range to focus on the target sound's frequency.

What's the difference between TD2e Standard and TD2e Kit?

The TD2e Kit includes everything in the Standard version, plus additional accessories for extended field use.

How long does the battery last?

≥3 hours of continuous operating time per battery. Actual operating time depends on environmental and usage conditions.

The TD2e Kit includes 2 batteries, allowing for full-day inspections with hot-swapping.

Media Reviews

See how professional technicians and engineers test FOTRIC in real-world environments.

Loading YouTube Title...

Hands-on automotive testing showcasing the FOTRIC TD2e acoustic camera locating chassis rattles, high-pressure fuel pump noise, and engine vacuum intake leaks.

Electrical Inspection

Loading YouTube Title...

In-depth testing of the FOTRIC acoustic imager detecting ultrasonic noise from LED switching converters, electronic adapters, and pressurized air leaks.

HVAC

Loading YouTube Title...

20-year master electrician tests the FOTRIC acoustic imager to pinpoint inaudible air leaks and detect invisible electrical loose connection arcing.

Automotive Diagnostics

Loading YouTube Title...

This Jeep 3.0 EcoDiesel came to us with a blown head gasket and a cooling system completely contaminated with oil. Normally, this is the kind of situation where replacing the engine starts to make a lot of sense. But the customer couldn’t afford a new engine and really wanted to save his Jeep, so we agreed to give it our best shot — with no guarantees on how this would turn out.

Automotive Diagnostics

Loading YouTube Title...

Detailed hands-on testing of the FOTRIC TD2e locating automotive engine mechanical friction and detecting inaudible gas leaks in real time.

Explore All Field Tests & Video Reviews →

5 stars: 4 (67%)
4 stars: 2 (33%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

I bought this to track down hard to pinpoint noises and squeaks. For example, the other night we heard a cricket chirping someplace in the house. It was so hard to tell where the sound was coming from!

The next night when it started chirping again I thought I'd see if I could find the cricket with the TD2e. I found the frequency range of crickets online and used that to narrow the range on the TD2e. Within a few seconds we discovered why we couldn't find the cricket. The sound was clearly shown coming up through the floor from under the house!

Pretty amazing tool.

Very amazing product. I am a mechanic with hearing problems and cannot hear certain leaks and this is a career saver!

Perfect for Leak Detection

Been chasing an air leak in our plant for weeks. Old ultrasonic tool kept giving false positives-drove me nuts. Plugged this in, swept the room, and there it was-clear as day on the screen, from like 50 feet away. The frequency display on the right side made it obvious which sound was the leak vs background noise. Took maybe 10 minutes total. Honestly, I was skeptical at first because the price seemed too good for this kind of tech. But nope. It just works. Already ordered a second one for our other facility.

Reliable and Accurate

An amazing device for locating and characterizing all kinds of sounds for such tasks as diagnosing faults, finding leaks, etc. Very sensitive and very accurate! I have seen similar devices from other manufacturers but the cheapest one costs more than $8K and the prices range upwards from there to well over $20K. Given the quality, advanced technology, and capabilities of the Fotric TD2e, it's an incredible value!

Paid for Itself in One Week

It works flawlessly. I recommend taking a quick course on the specific sound frequencies you’re looking for to get better results. During a basic simulated gas leak test, the camera had no trouble at all, whether due to the frequency or ambient noise. It’s also worth mentioning that it arrived super fast (even earlier than expected). I highly recommend it.

Good Addition to Our Toolkit

Great device, long battery life and lots of functionality. I haven’t been able to connect via USB-C to download imagery no download on website. Not an issue with how the device operates. The value is very good considering the closest being at least 10x more expensive! I would love to see an acoustic/thermal combo from Fotric.
