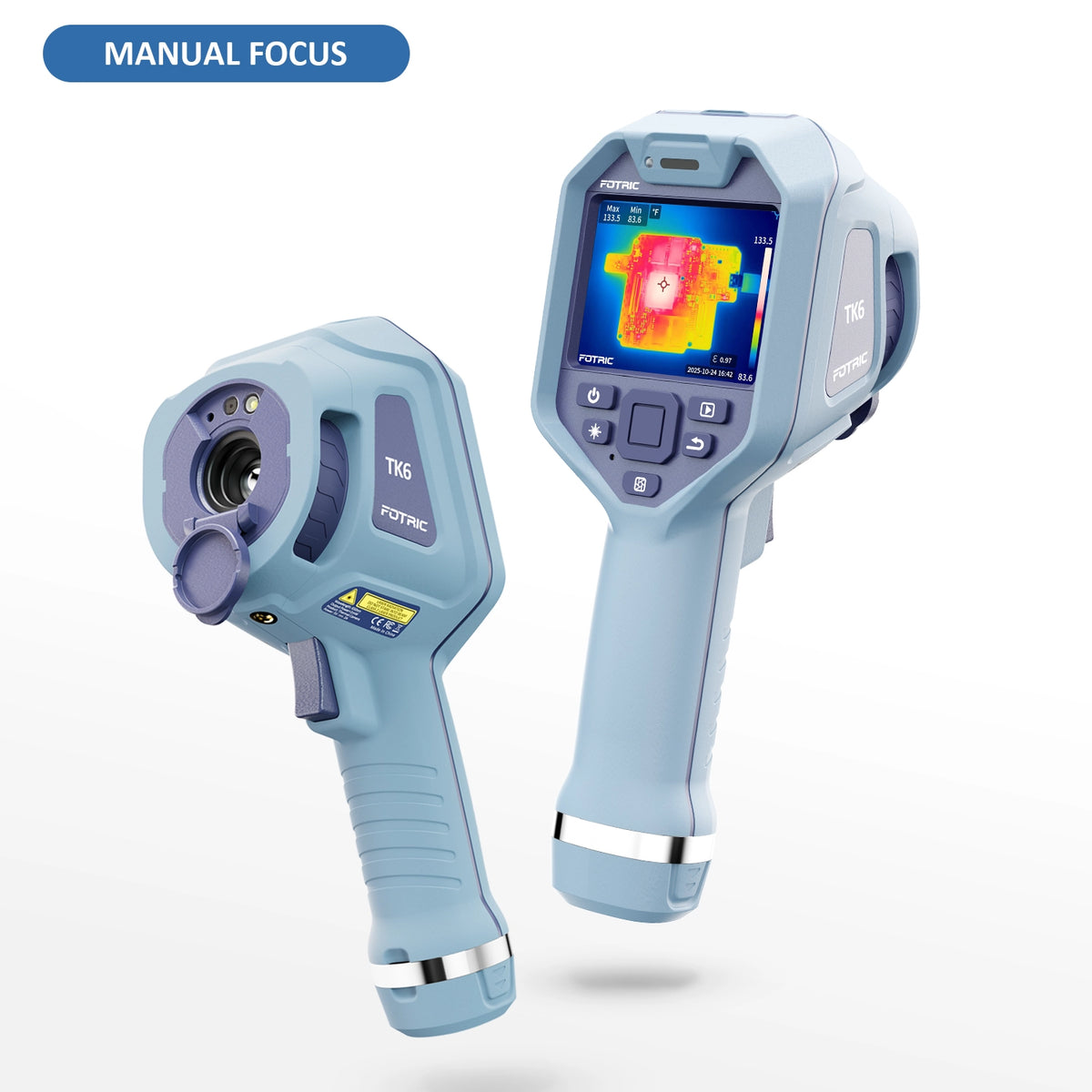

FOTRIC TK6 Thermal Imaging Camera

Professional-Grade Thermal Imaging

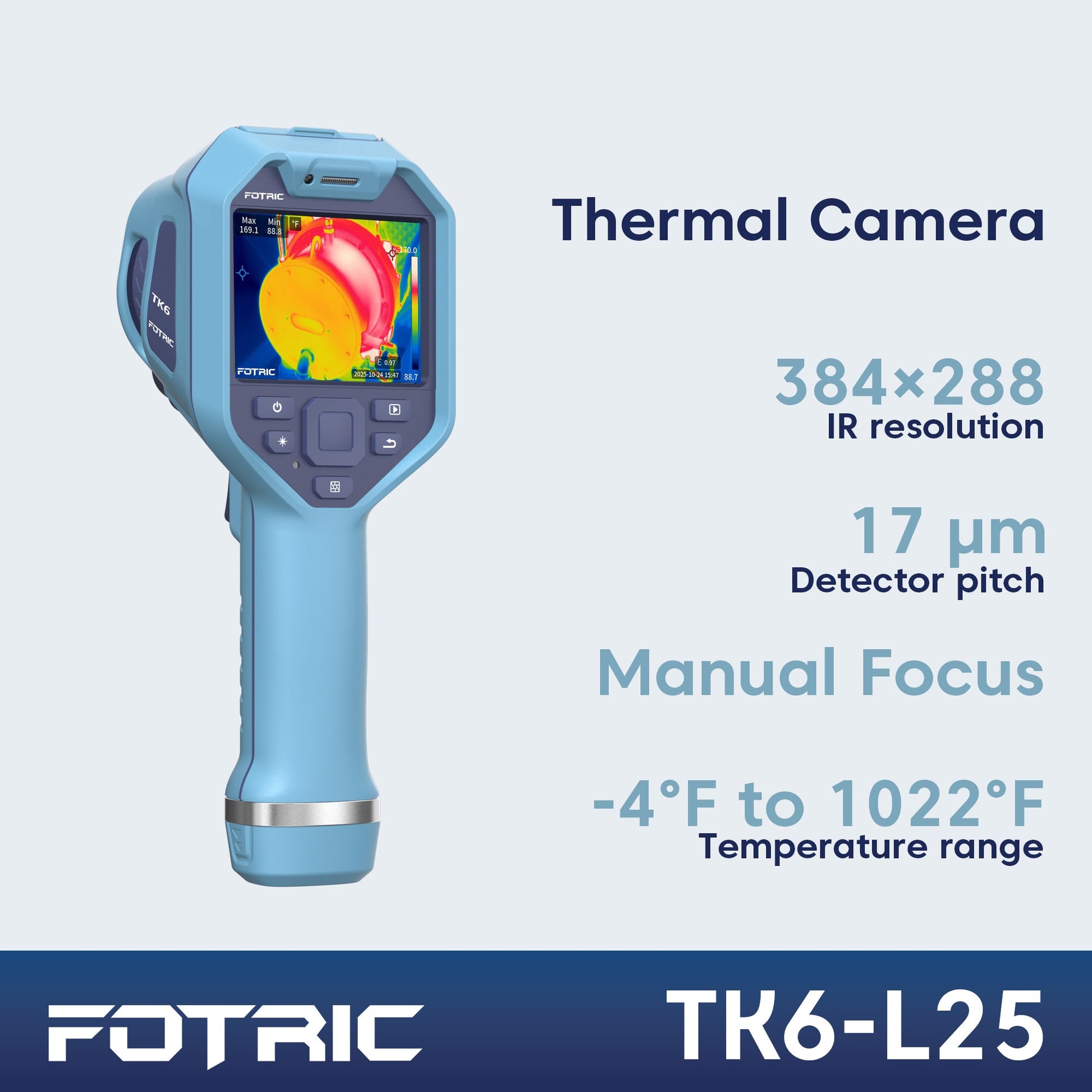

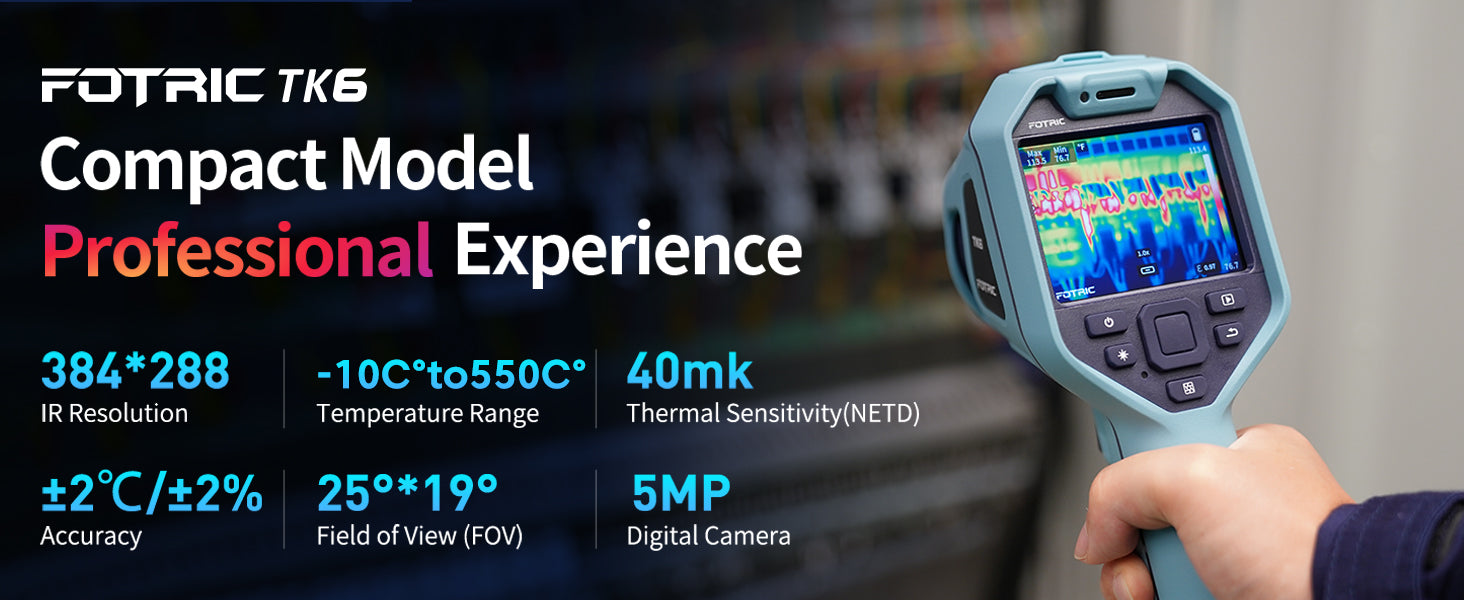

FOTRIC TK6 combines a true 384 × 288 infrared detector (110,592 real pixels) with ceramic sensor packaging, ensuring durability, accuracy, and reliability in demanding industrial environments. In the thermal imaging industry, 384 × 288 and above defines the professional class—below this range, most products rely on interpolated or algorithmic “up-res” methods that simulate higher resolution rather than capturing it.

High Precision

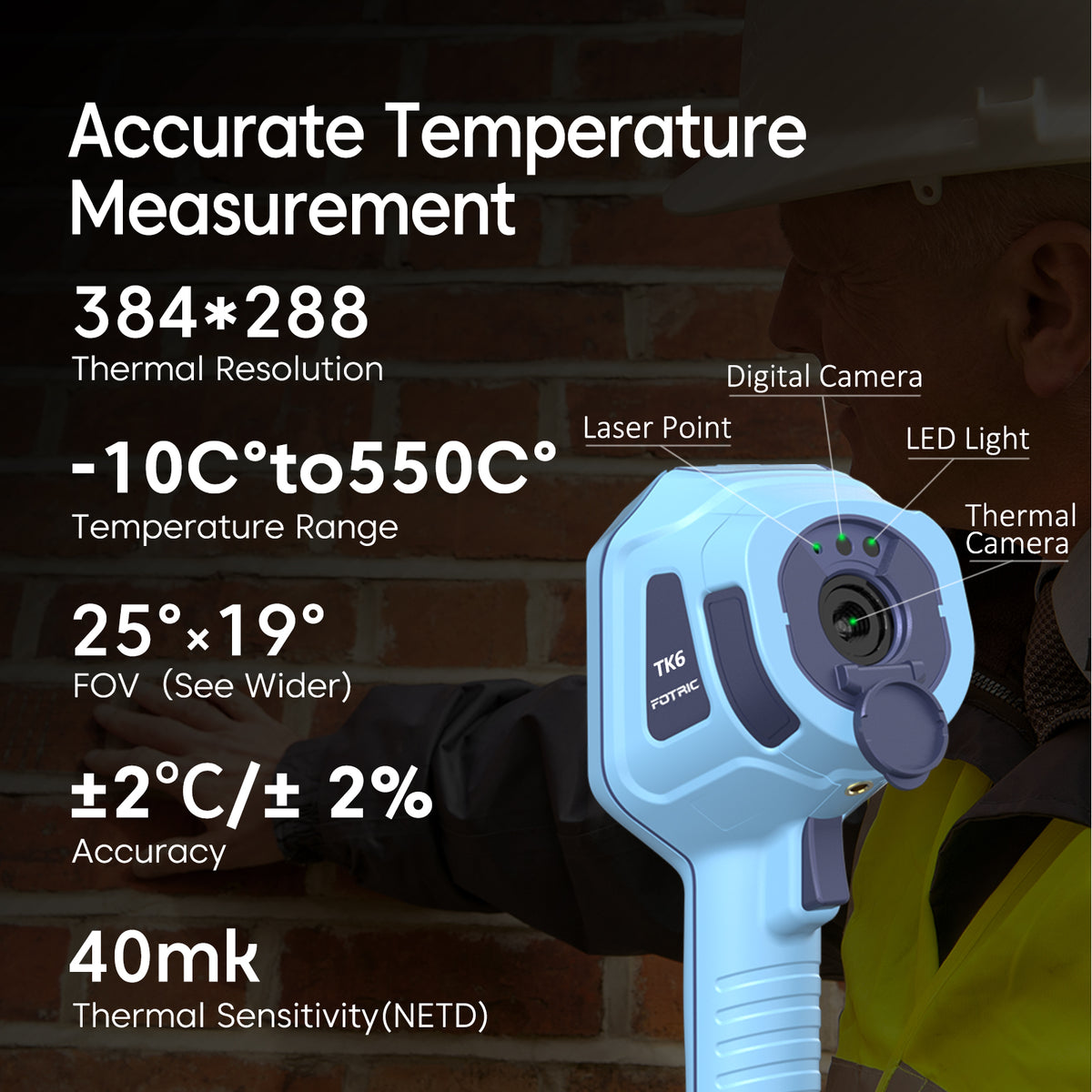

At its core, the TK6 employs a 17 µm pixel-pitch detector, larger than the 12 µm sensors commonly used in budget models. The result is a stronger signal-to-noise ratio and sharper, higher-contrast thermal images, especially when detecting subtle temperature differences. With 40 mK thermal sensitivity, TK6 detects temperature differences as small as 0.04 °C—ideal for pinpointing electrical hotspots, heat leaks, electrical faults, or building defects.

Manual Focus

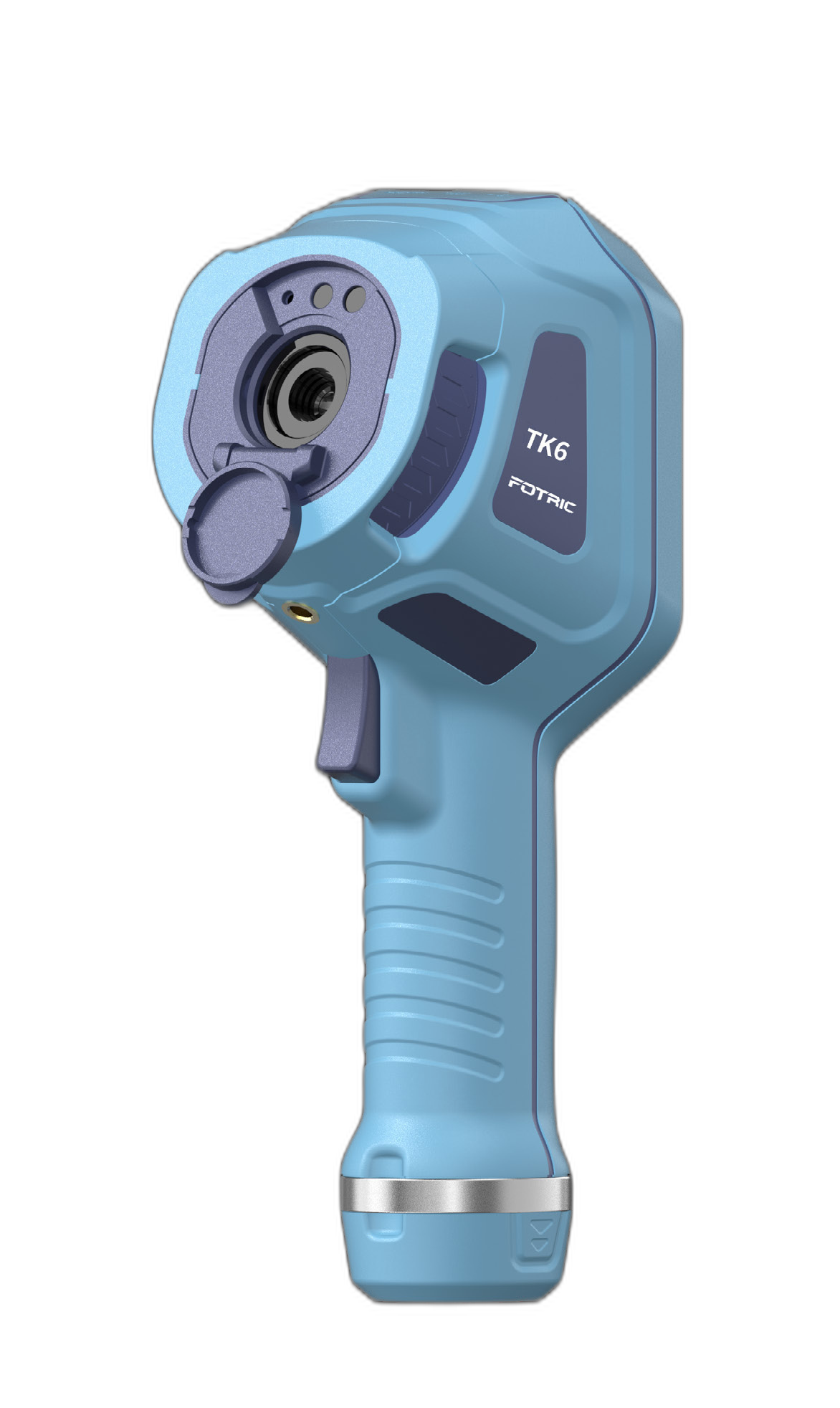

The manual focus lens—a hallmark of professional imagers—enables precise clarity across varying distances, ensuring accurate temperature readings whether the target is near or far. In contrast, focus-free entry-level cameras can only measure accurately at a single fixed range.

Smart Tools for Faster Diagnostics

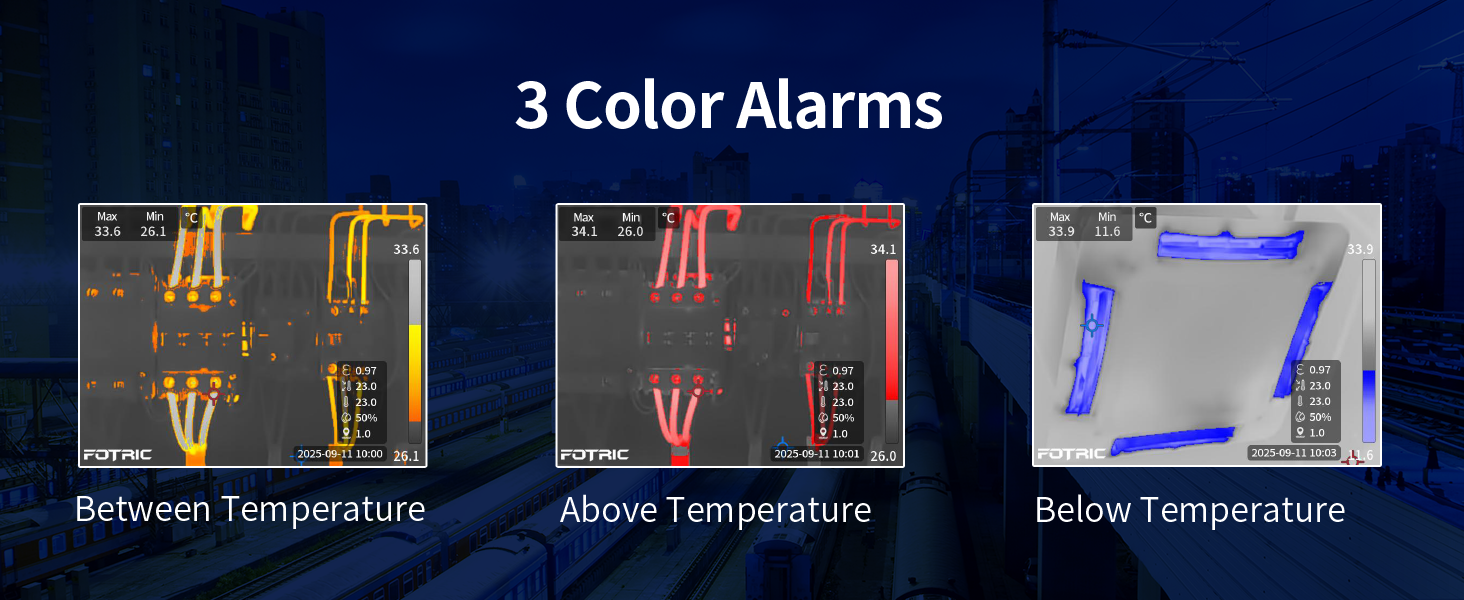

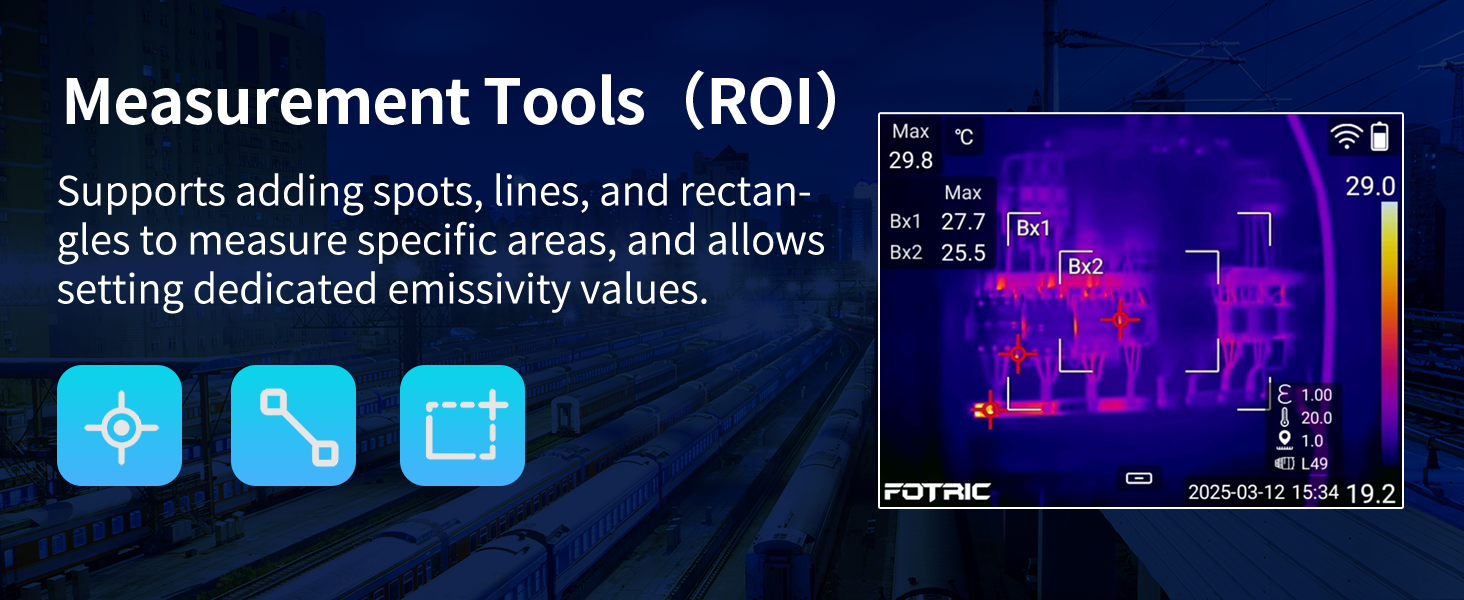

Features include auto hot/cold spot tracking, adjustable emissivity, and real-time color alarms for temperature thresholds. Ideal for:

1. Electrical inspections – locate overloaded circuits or faulty connections

2. HVAC inspections – identify refrigerant leaks or ductwork inefficiencies

3. Building inspections – detect moisture intrusion or energy loss behind walls

4. Home inspections – floor heating issues, house leaks, sewer blockages

5. PCBA inspections – manual focus enables detection of abnormal temperature distribution; clear images can be captured at distances as close as 10 cm

Image Modes & TWB Feature

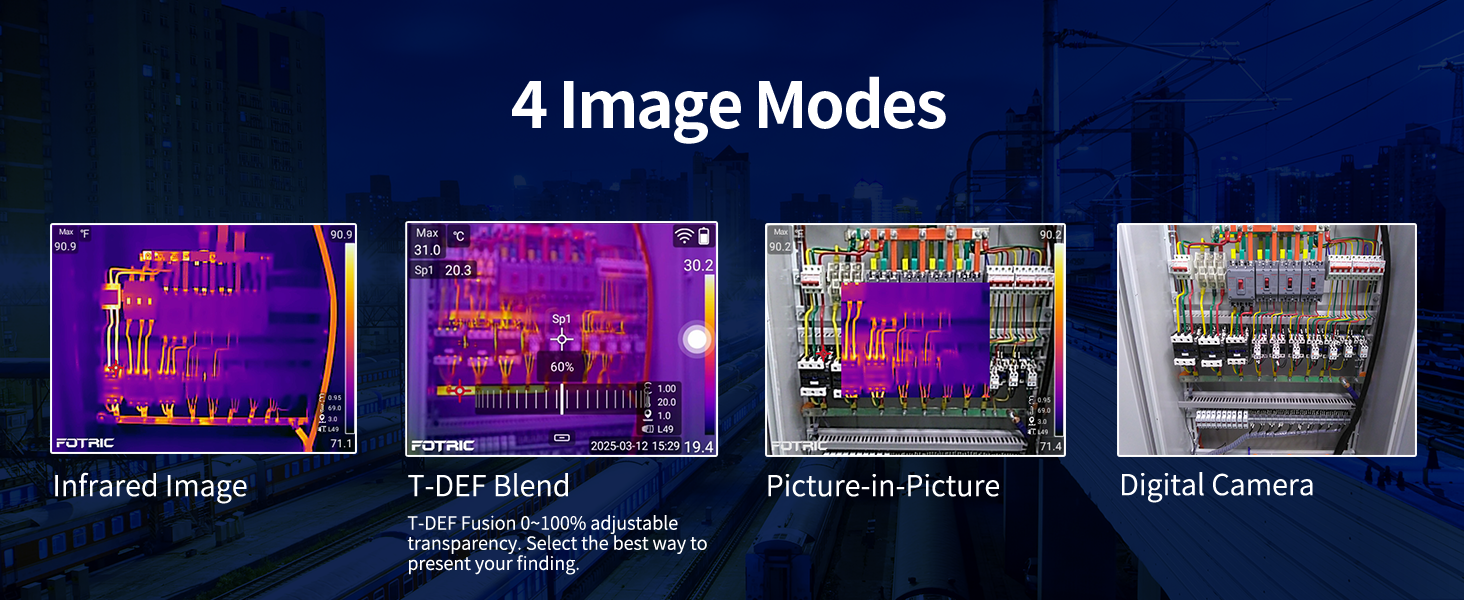

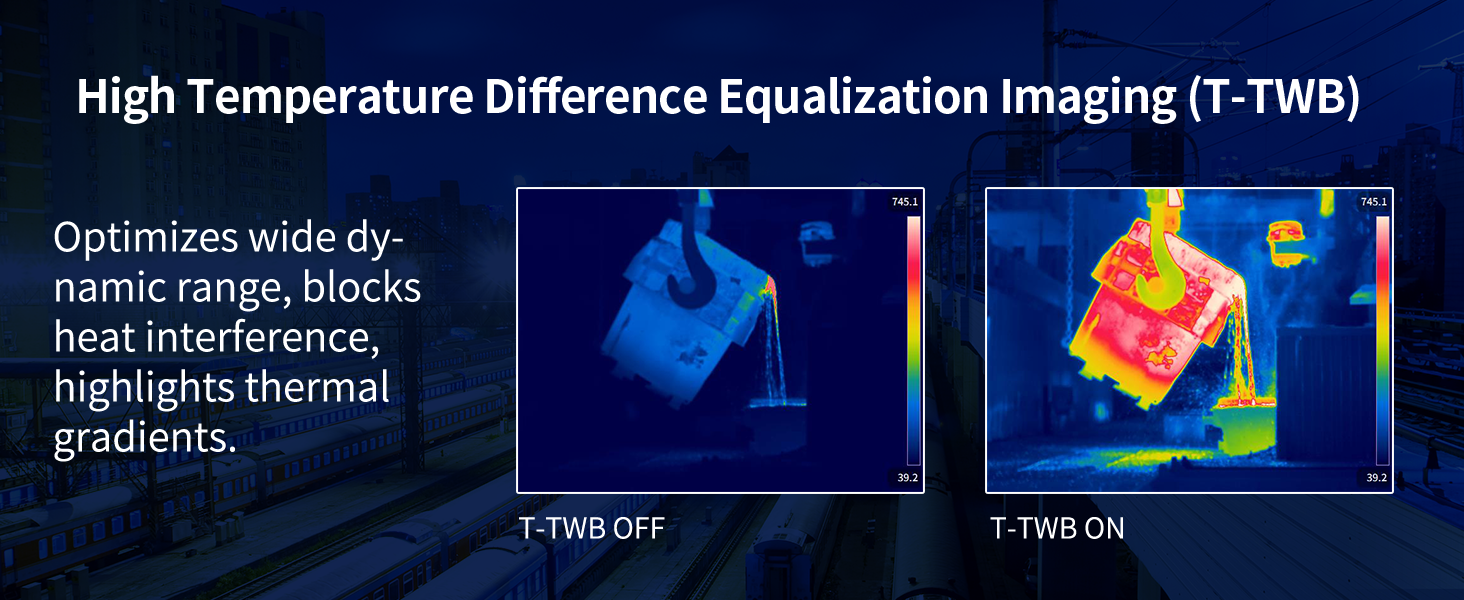

TK6 offers four image modes: Infrared Image, T-DEF Fusion, Picture-in-Picture, and Digital Camera. The TWB feature dynamically re-scales the color palette based on pixel temperature distribution, allowing inspectors to visualize overall temperature patterns more clearly and accurately.

Portable & Rugged Design

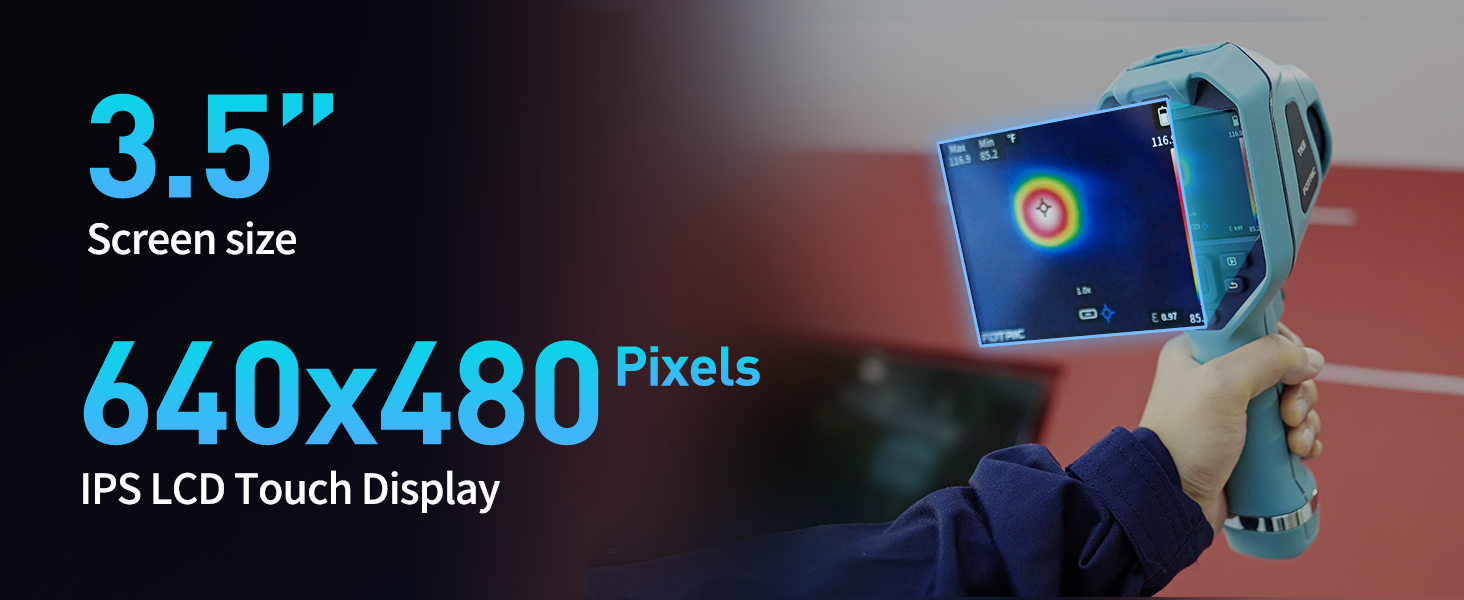

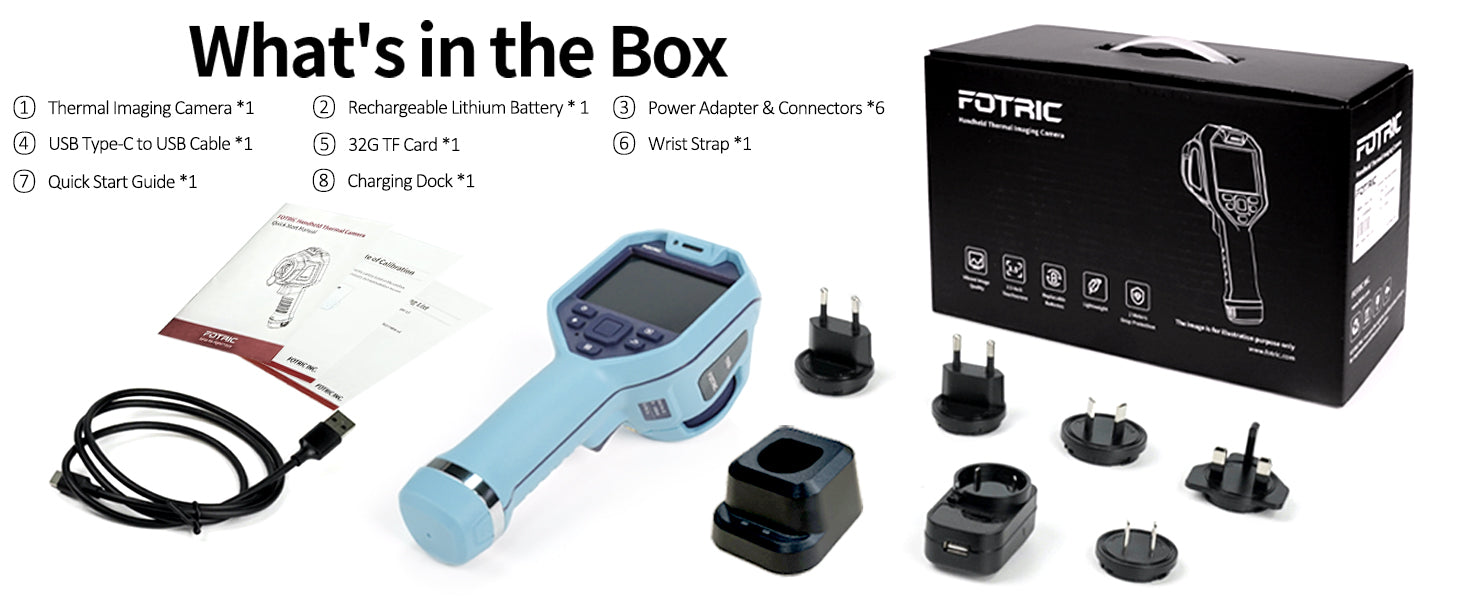

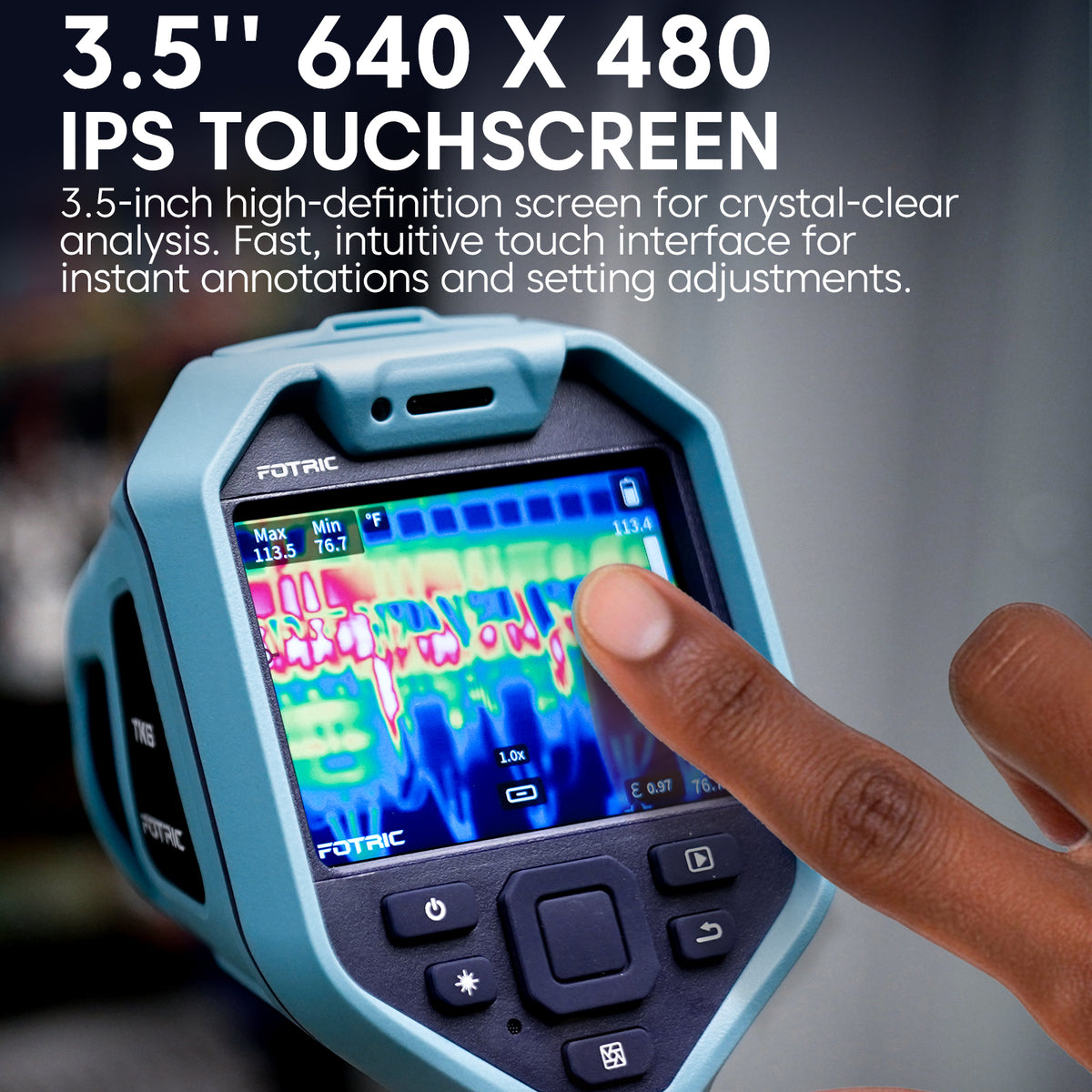

The thermal camera complies with IP54 standards for dust and water splash protection and offers 2 m drop resistance (IEC 60068-2-32 tested). A 3.5" touchscreen and 5 MP visual camera ensure clear documentation in bright sunlight or dark environments. Stores JPG thermal images on a 32 GB TF card. Includes one removable 5000 mAh Li-ion battery providing 4+ hours of continuous use, with USB-C fast charging (approximately 2.5 hours to full). Weighs just 1.59 lbs (0.72 kg).
