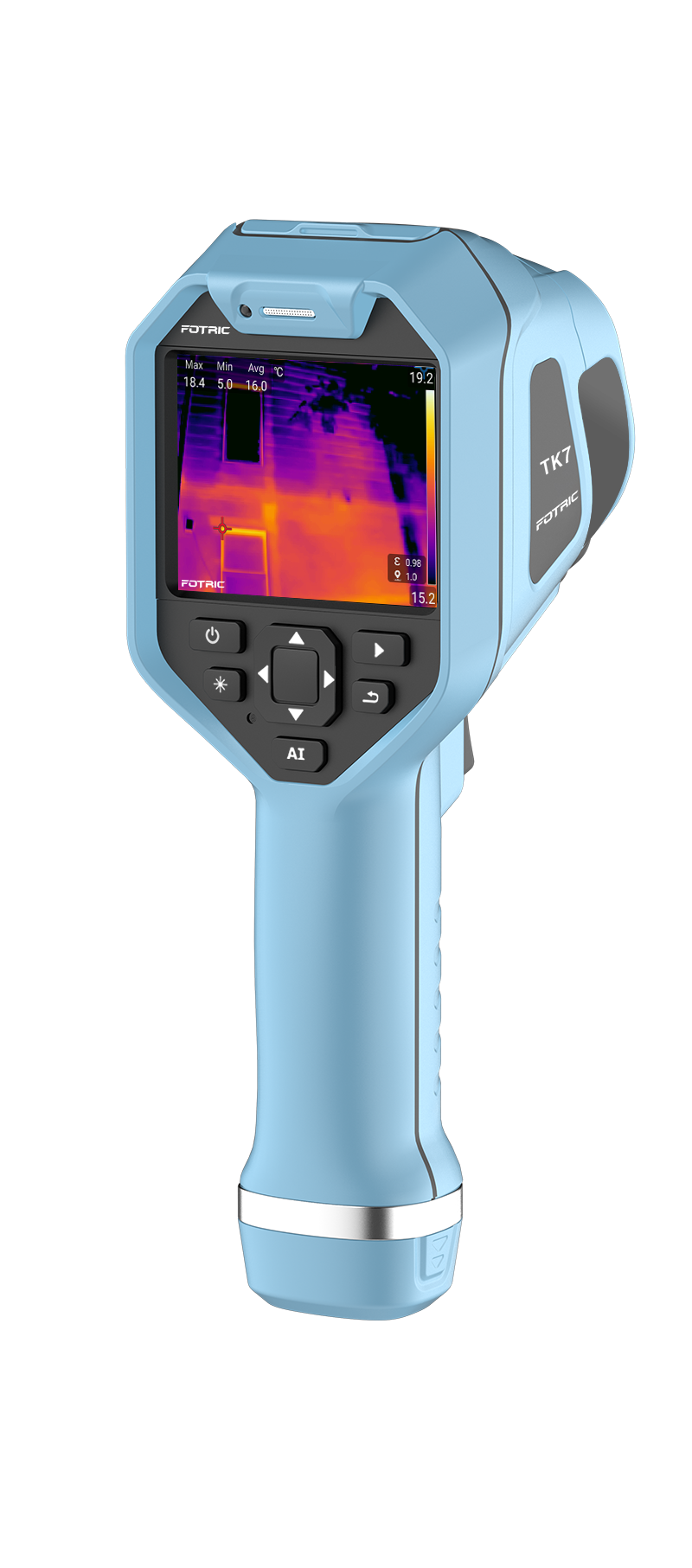

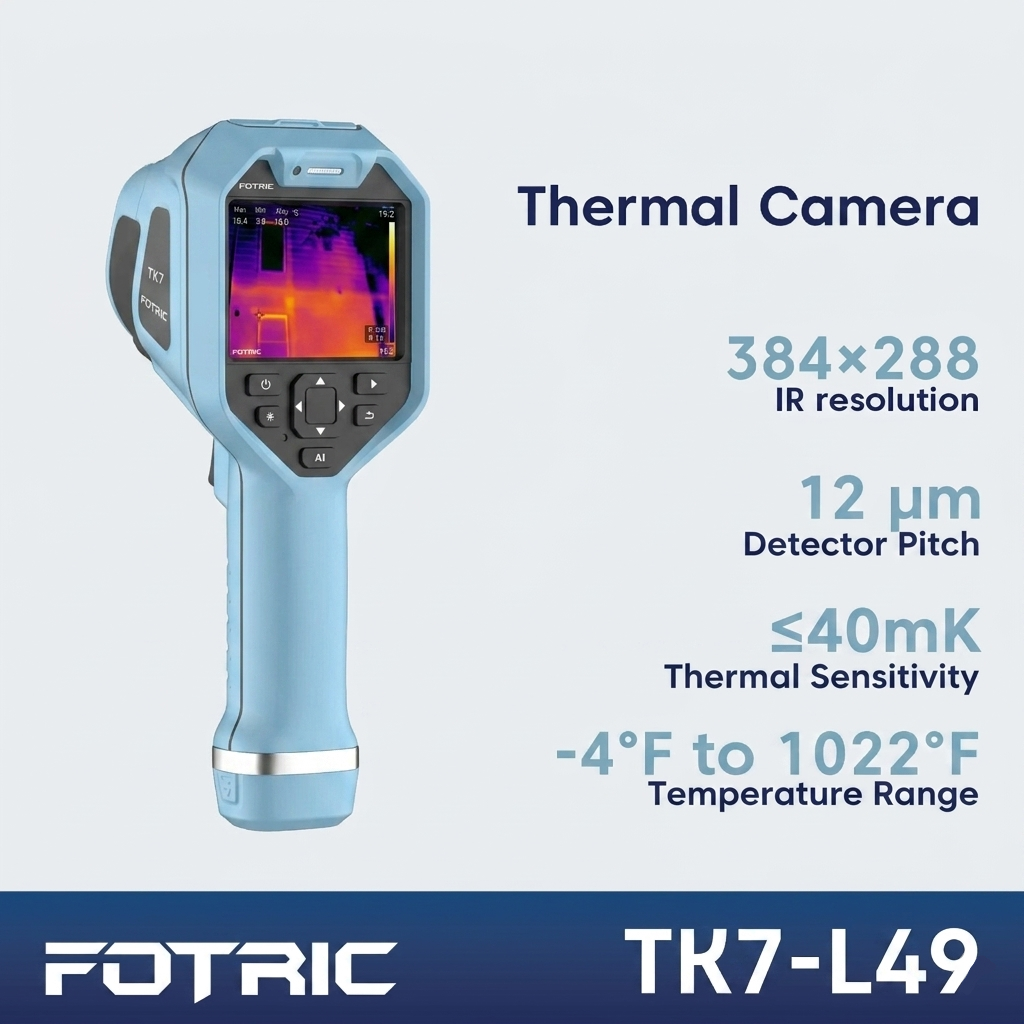

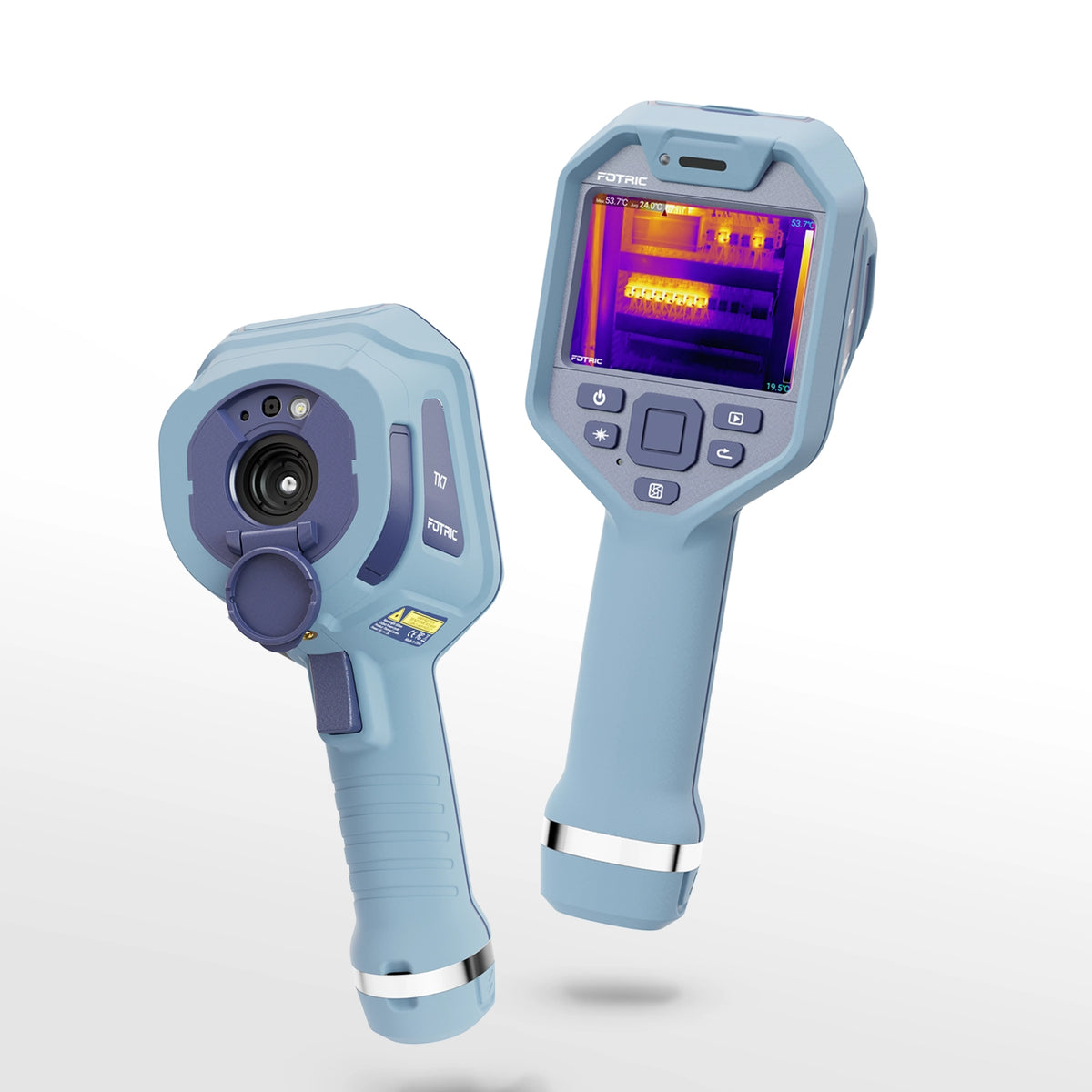

FOTRIC TK7 Thermal Imaging Camera
-

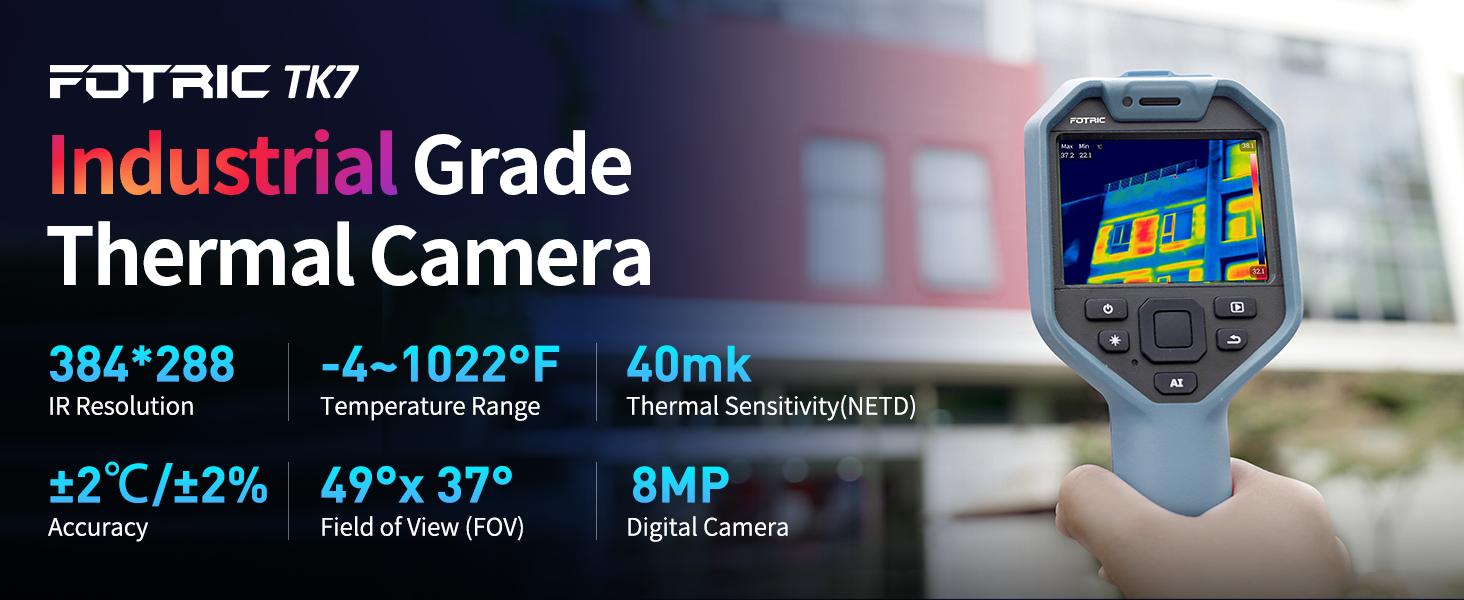

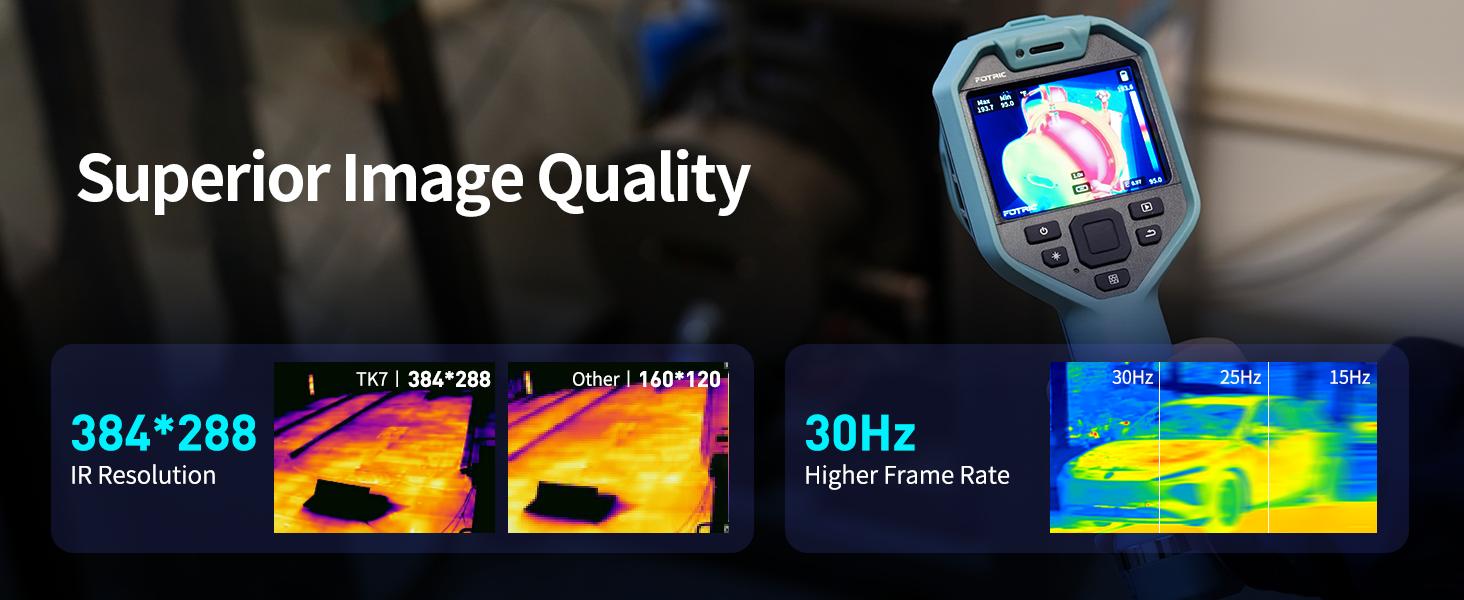

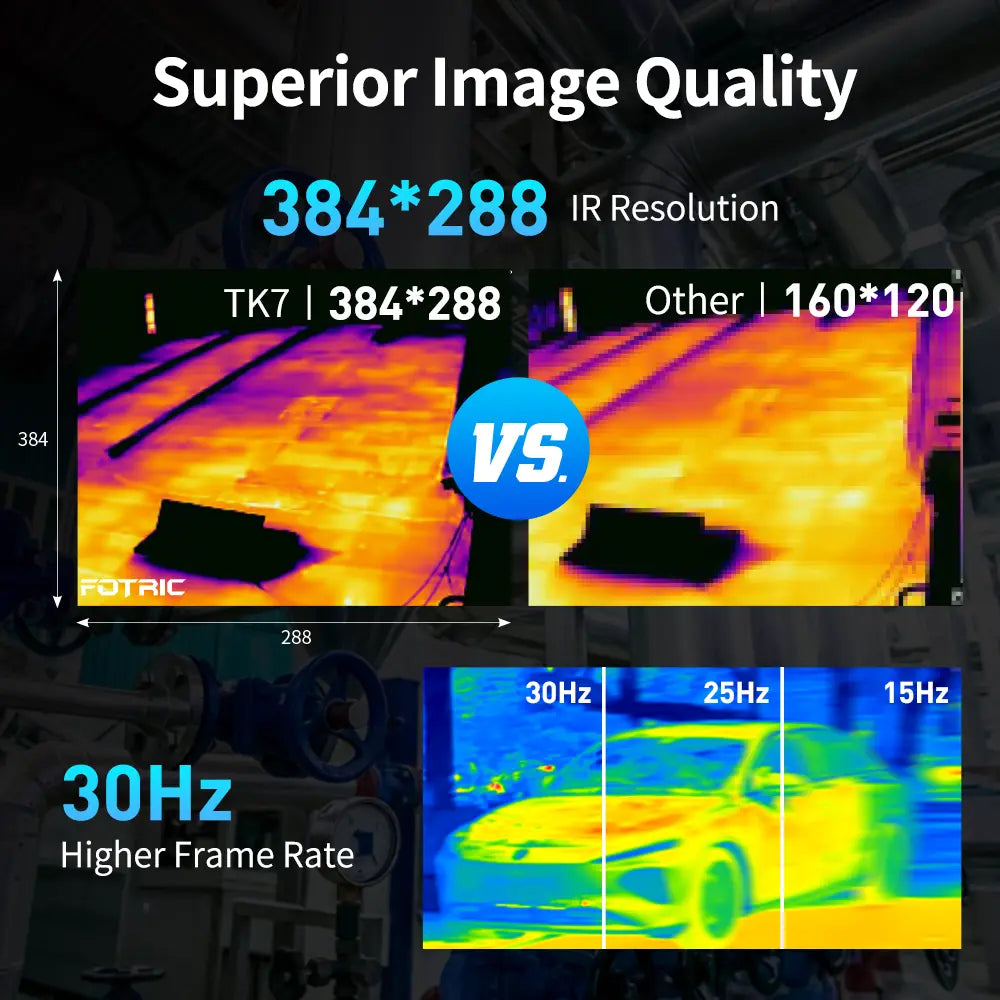

Clear Thermal Imaging with True 384 × 288 Resolution

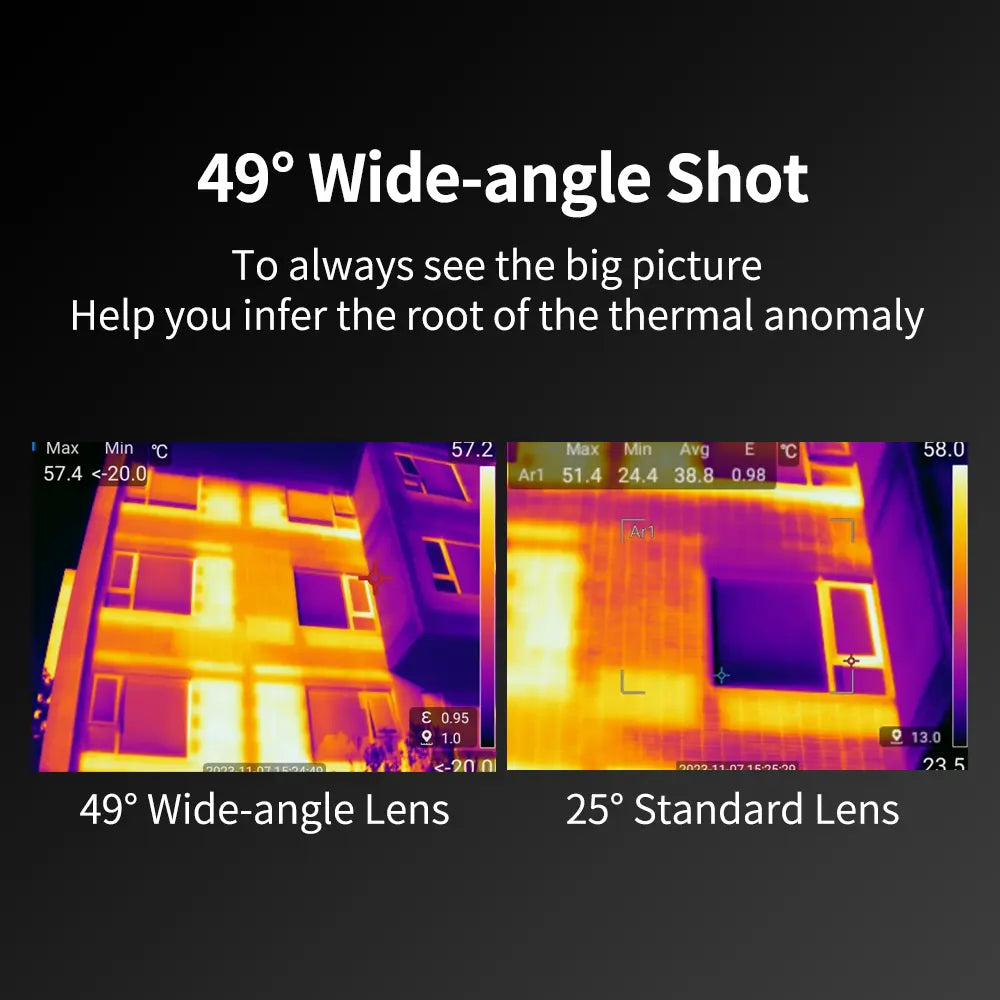

Equipped with a true 384 × 288 infrared detector and a wide 49° × 37° field of view, TK7 delivers clear thermal images for fast scanning and general inspection tasks. The focus-free design allows users to capture thermal images instantly without manual adjustment. -
Ideal for Everyday Inspection Applications

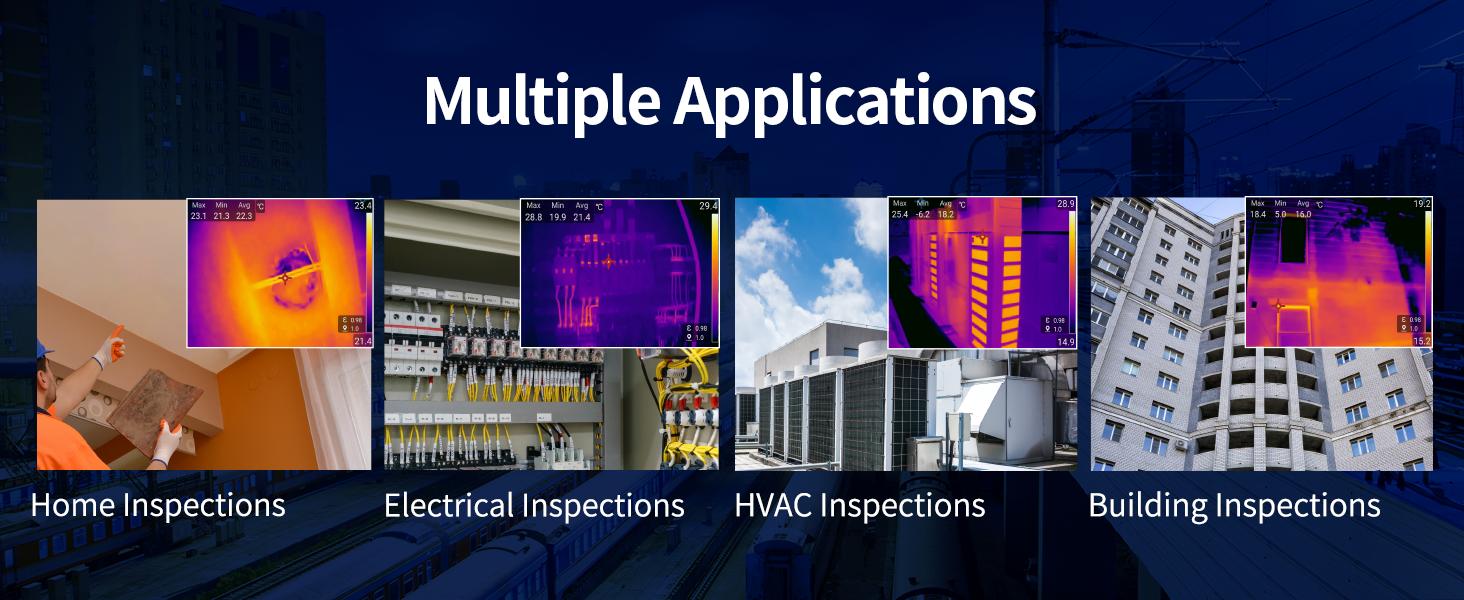

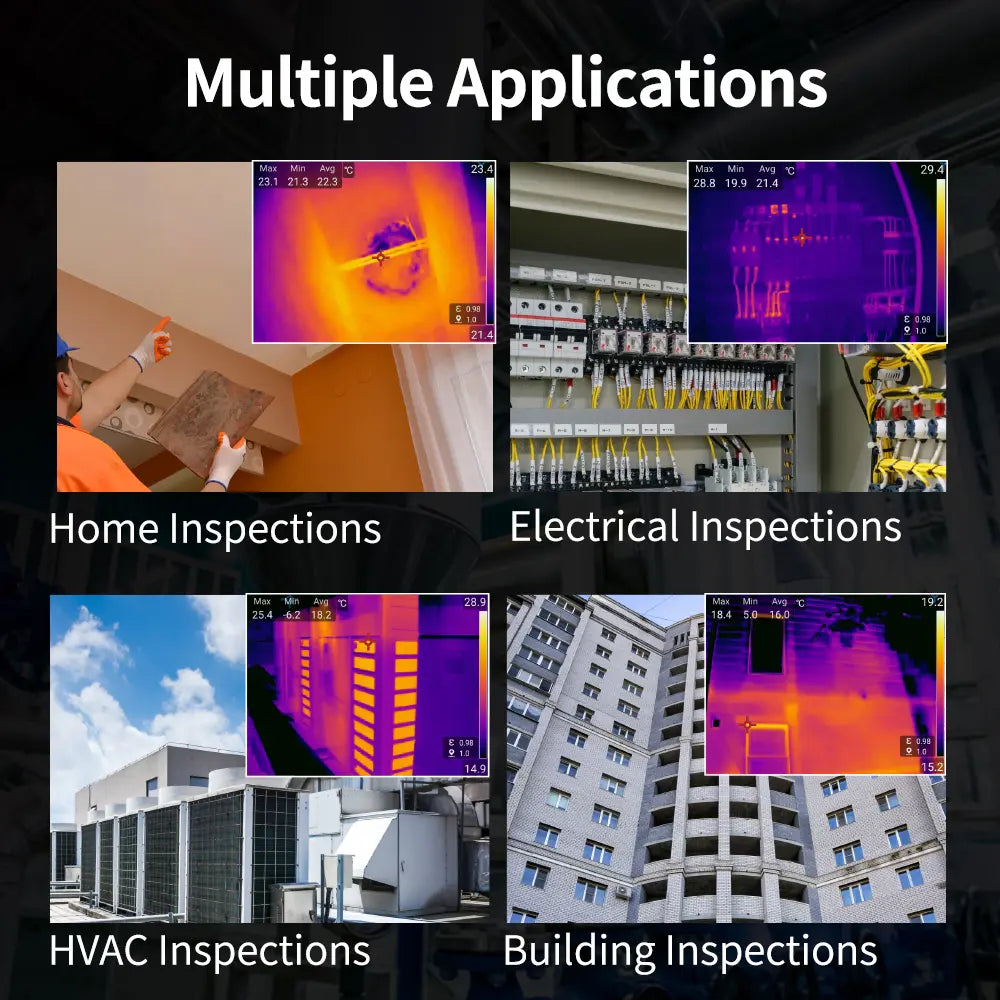

Designed for routine electrical, mechanical, HVAC, and building inspections, TK7 helps quickly identify overheating components, insulation issues, and abnormal temperature patterns—enabling efficient, non-contact fault detection. -
Wide Temperature Measurement Range

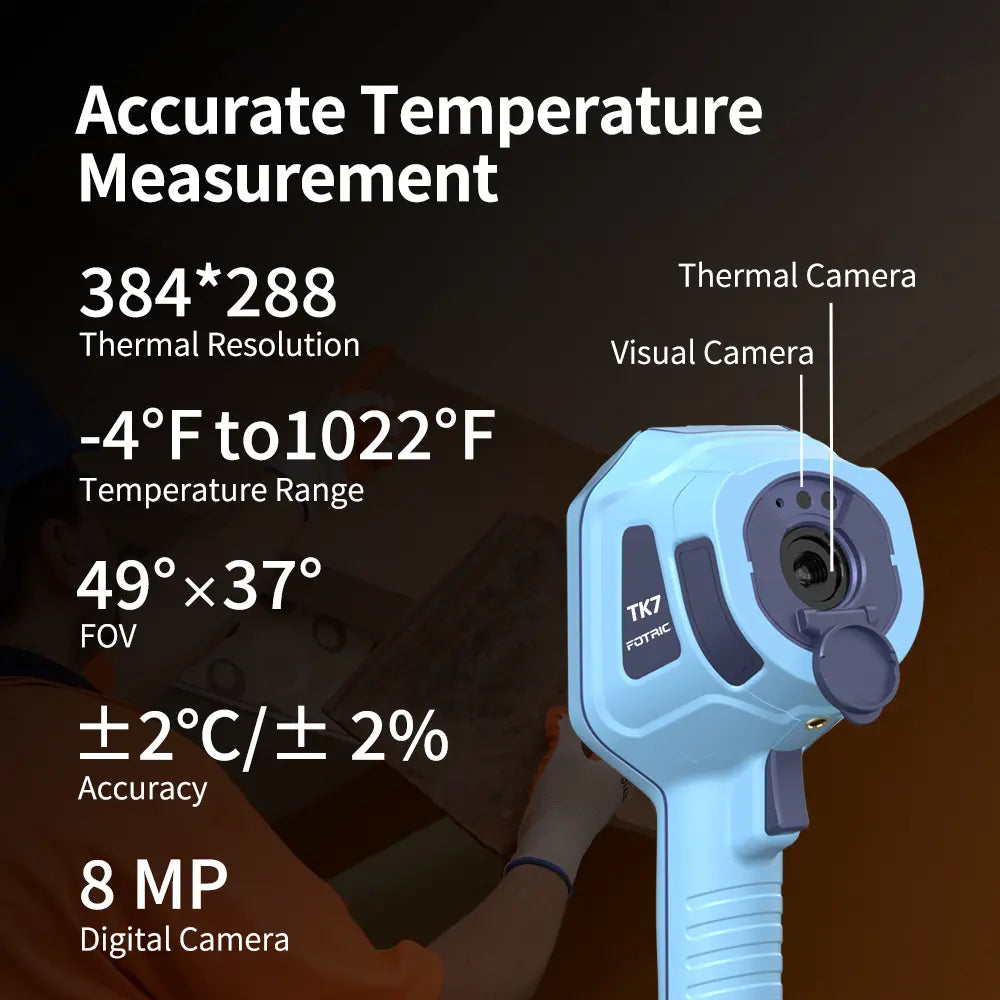

Covers a broad temperature range from −4 °F to 1022 °F (−20 °C to 550 °C), making it suitable for a variety of industrial and maintenance scenarios, from low-temperature environments to high-heat equipment checks. -
Thermal & Visual Image Fusion
Features an 8-megapixel visual camera that works alongside thermal imaging, providing clear visual references to improve inspection accuracy and reporting clarity. -
Touchscreen Operation in a Compact Design
The 3.5" touchscreen offers intuitive operation and clear visualization of thermal data, while the lightweight, handheld form factor makes TK7 easy to carry and use for daily inspections.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Sense the Invisible. Predict the Future.
Real Sensor
- A ceramic-packaged detector, professional benchmark for accuracy and detail
- A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
- A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images
Real Focus
- A hallmark of professional imagers, makes true professional imaging achievable for every technician
- Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
- With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB
Real Professional
- With an IFOV of 1.14 mrad, it's capable of capturing finer temperature differences and achieving more accurate imaging
- 5-megapixel industrial-grade digital camera; Images will remain clear even in report
- 3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass
Six Professional Edges

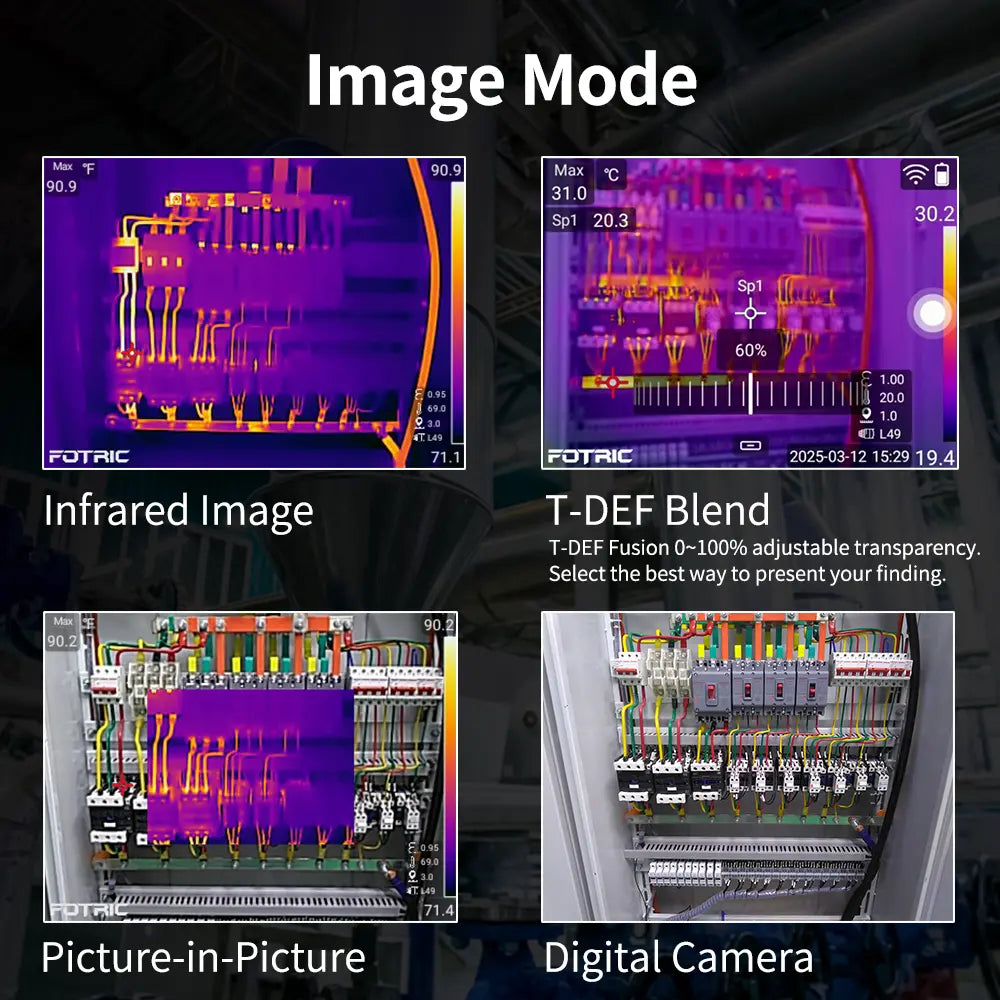

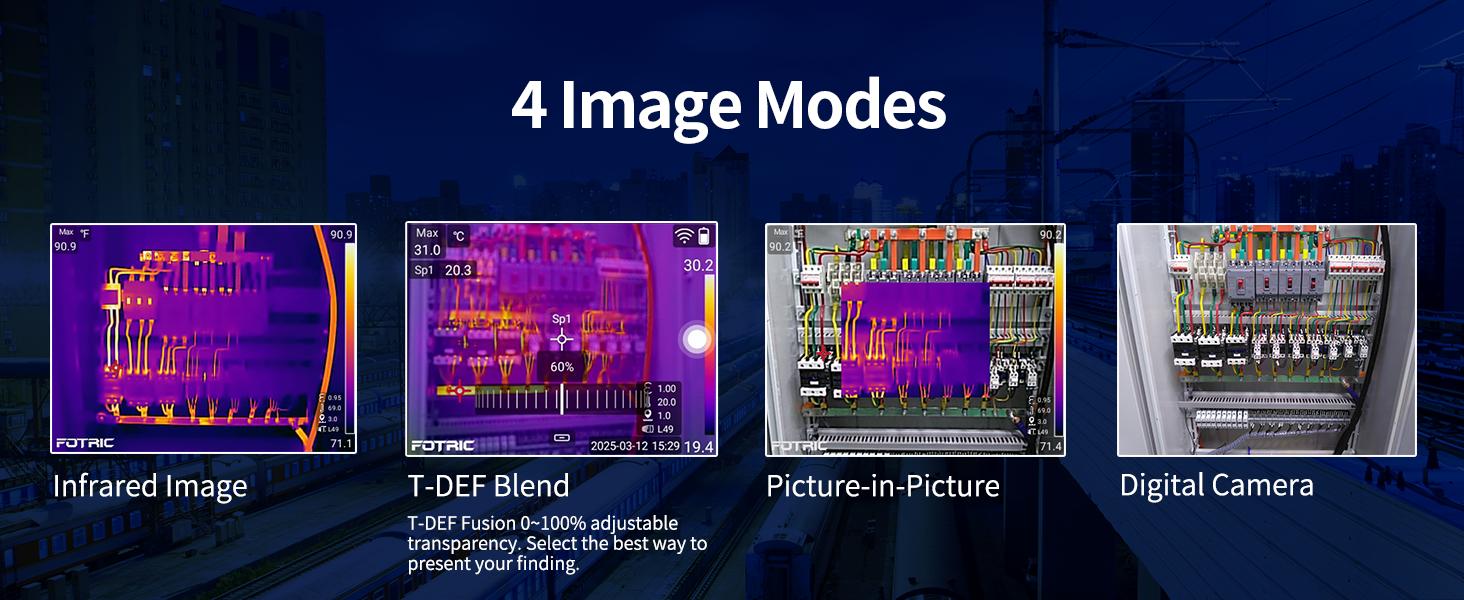

T-DEF® Blend Mode
Exclusive T-DEF® visible-light temperature measurement with infrared transparency adjustable from 0%–100%, automatically aligned with IR imaging.
Ultra-close Imaging
Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.
Measurement Parameter Compensation
Full parameter correction including emissivity,ambient temperature, reflected temperature,and IR window ransmittance, ensuring researchgrade measurement accuracy.
High Refresh Rate
30 Hz high-frame-rate real-time imaging, smooth and lag-free, capturing transient temperature rises and dynamic targets.
Versatile Measurement Tools
Supports 20 measurement points, 10 measurement boxes, and 10 measurement lines, covering complex scenes far beyond comparable products.
Made for Continuous Operation
≥ 4 hours battery life, 2.5 h fast charge to 90%, supports USB-C external power for uninterrupted, all-day operation.
