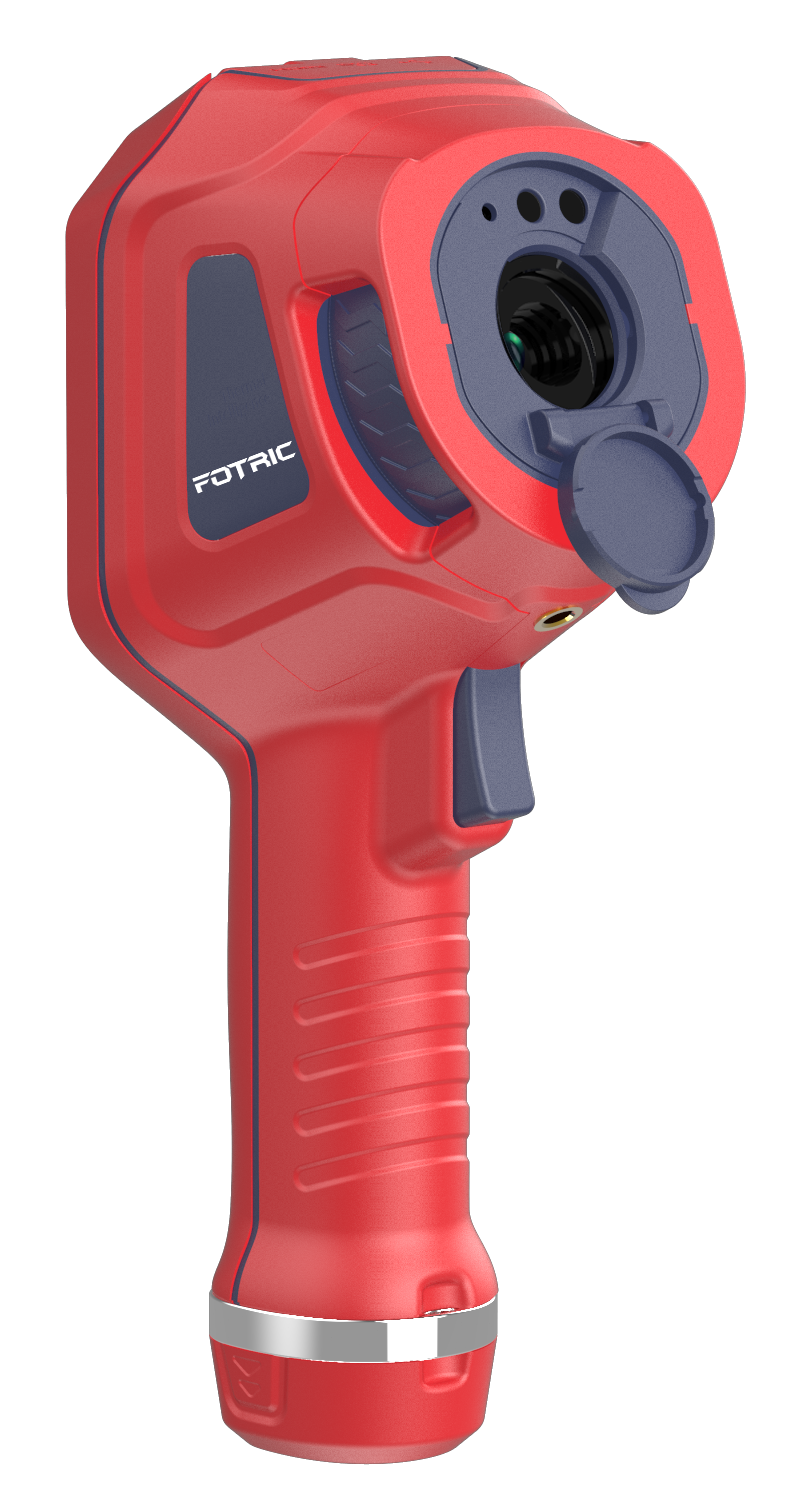

FOTRIC C2 Thermal Imaging Camera
- Advanced Compact Thermal Imaging
FOTRIC C2 Thermal Imaging Camera is a compact and cost-effective handheld thermal imager for facility maintenance and industrial applications. It adopts 160×120 infrared resolution and ＜50mK thermal sensitivity (NETD), delivering clear thermal visualization on a 3.5-inch responsive touchscreen to quickly identify temperature anomalies in daily inspections.
- Manual Focus & Wide-Angle Lens
This compact camera adopts manual focus for stable and precise imaging, equipped with a 46°×35° wide-angle lens to cover large inspection areas efficiently. It supports full radiometric video recording to capture complete temperature data for fault tracking and evidence preservation.
- Ergonomic & Rugged Design
Weighing only 730g for lightweight handheld operation, it features an IP54 industrial protection rating and can withstand a 2-meter drop, adapting to harsh on-site working conditions. The 5000mAh rechargeable battery supports ≥4 hours of continuous use, meeting all-day inspection demands.
- Intuitive Operation & Analysis
Built with an Android platform interface for easy operation, it supports QR/barcode scanning, voice/text annotation, and on-device radiometric image & video analysis. Compatible with FOTRIC AnalyzIR and IRExplorer software, it realizes one-click report generation and remote data access.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Sense the Invisible. Predict the Future.
Real Sensor
- A ceramic-packaged detector, professional benchmark for accuracy and detail
- A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
- A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images
Real Focus
- A hallmark of professional imagers, makes true professional imaging achievable for every technician
- Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
- With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB
Real Professional
- With an IFOV of 1.14 mrad, it's capable of capturing finer temperature differences and achieving more accurate imaging
- 5-megapixel industrial-grade digital camera; Images will remain clear even in report
- 3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass
Six Professional Edges
T-DEF® Blend Mode
Exclusive T-DEF® visible-light temperature measurement with infrared transparency adjustable from 0%–100%, automatically aligned with IR imaging.
Ultra-close Imaging
Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.
Measurement Parameter Compensation
Full parameter correction including emissivity,ambient temperature, reflected temperature,and IR window ransmittance, ensuring researchgrade measurement accuracy.
High Refresh Rate
30 Hz high-frame-rate real-time imaging, smooth and lag-free, capturing transient temperature rises and dynamic targets.
Versatile Measurement Tools
Supports 20 measurement points, 10 measurement boxes, and 10 measurement lines, covering complex scenes far beyond comparable products.
Made for Continuous Operation
≥ 4 hours battery life, 2.5 h fast charge to 90%, supports USB-C external power for uninterrupted, all-day operation.
