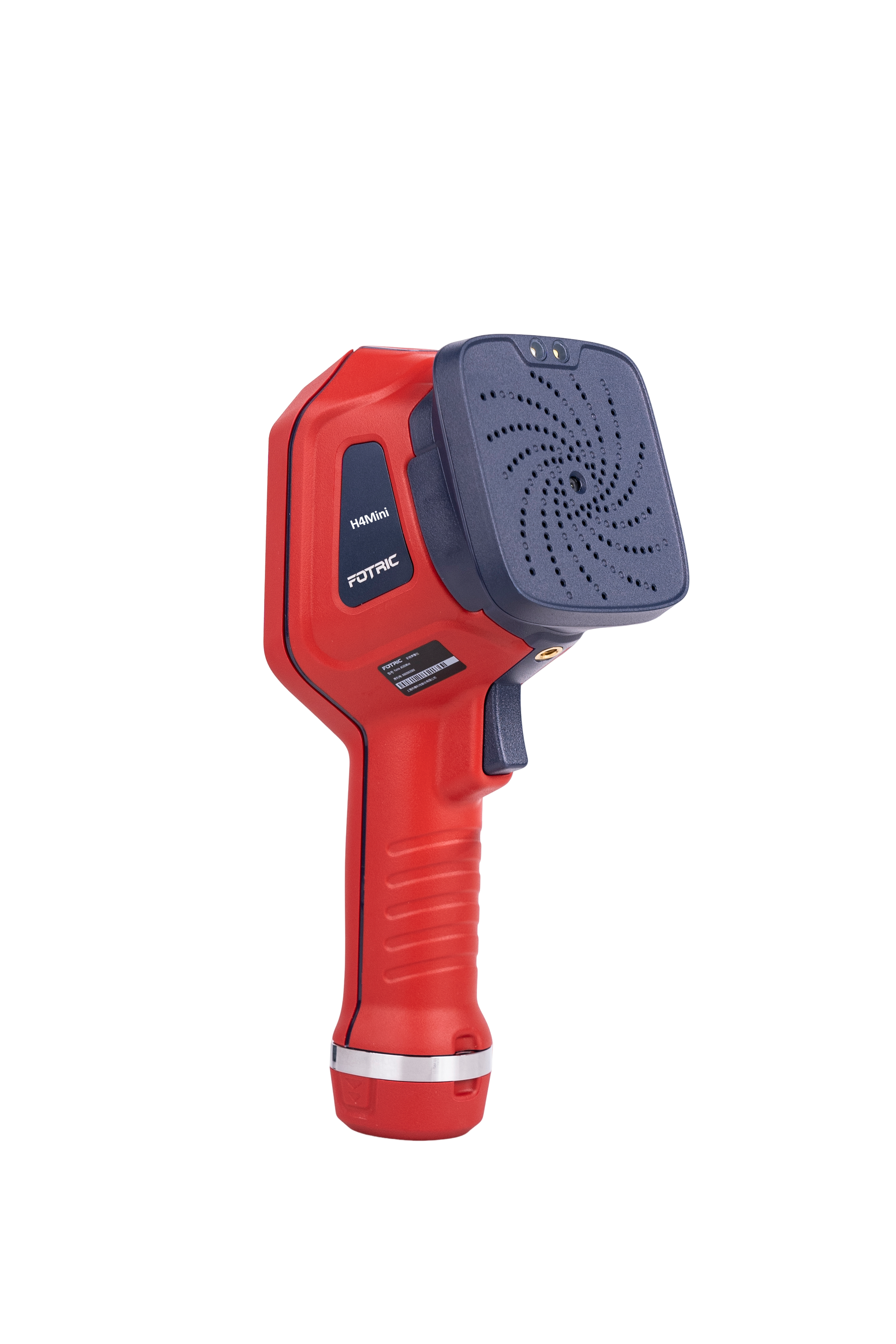

FOTRIC H4Mini Acoustic Imaging Camera
- Advanced Mini Acoustic Imaging Technology
FOTRIC H4Mini Acoustic Imaging Camera is a compact, professional inspection tool equipped with 112 high-sensitivity MEMS digital microphones and a 66°×52° acoustic field of view. It covers a wide frequency range of 2kHz–100kHz to detect ultrasonic signals beyond human hearing, paired with a 13MP industrial-grade digital camera for clear visual reference, enabling accurate and fast sound source localization.
- Fast & Non-Contact Leak & Fault Detection
This lightweight acoustic camera quickly identifies compressed air leaks, vacuum system leaks, equipment loose joint vibration, and tire air leaks without shutdown or contact. It visualizes abnormal sound sources in real time, helping maintenance teams locate hidden faults in seconds, reduce downtime, and avoid costly equipment failures.
- Multi-Mode Imaging & Professional Diagnostic Tools
Supports single-source, multi-source, and hologram imaging modes for flexible adaptation to on-site noise conditions. It features exclusive T-FFTD® acoustic image delay to capture instantaneous sound signals, acoustic image focus for targeted localization, and precise SPL measurement for industrial-grade sound signal diagnosis.
- On-Board Intelligence & Easy Data Management
The H4Mini supports on-device acoustic report generation to export inspection data directly. It includes QR code/barcode scanning for quick annotation, gray-scale background display, and a favorites function for efficient image sorting and management, streamlining on-site inspection workflows.
- Ultra-Compact & Rugged Portable Design
Weighing only 770g for one-handed operation, this camera features a 3.5-inch IPS LCD touchscreen (640×480) and an IP54 rugged rating. Equipped with a 5000mAh field-replaceable lithium battery for ≥4 hours of continuous use, it is ideal for long-duration field inspections in industrial, HVAC, manufacturing, and utility scenarios.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Sense the Invisible. Predict the Future.
Real Sensor
- A ceramic-packaged detector, professional benchmark for accuracy and detail
- A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
- A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images
Real Focus
- A hallmark of professional imagers, makes true professional imaging achievable for every technician
- Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
- With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB
Real Professional
- With an IFOV of 1.14 mrad, it's capable of capturing finer temperature differences and achieving more accurate imaging
- 5-megapixel industrial-grade digital camera; Images will remain clear even in report
- 3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass
Six Professional Edges
T-DEF® Blend Mode
Exclusive T-DEF® visible-light temperature measurement with infrared transparency adjustable from 0%–100%, automatically aligned with IR imaging.
Ultra-close Imaging
Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.
Measurement Parameter Compensation
Full parameter correction including emissivity,ambient temperature, reflected temperature,and IR window ransmittance, ensuring researchgrade measurement accuracy.
High Refresh Rate
30 Hz high-frame-rate real-time imaging, smooth and lag-free, capturing transient temperature rises and dynamic targets.
Versatile Measurement Tools
Supports 20 measurement points, 10 measurement boxes, and 10 measurement lines, covering complex scenes far beyond comparable products.
Made for Continuous Operation
≥ 4 hours battery life, 2.5 h fast charge to 90%, supports USB-C external power for uninterrupted, all-day operation.
