FOTRIC H6Flex Acoustic Imaging Camera
- Advanced Acoustic Imaging Technology
FOTRIC H6Flex Acoustic Imaging Camera is equipped with 162 high-sensitivity MEMS digital microphones and a 66°×52° acoustic image field of view, supporting a 200kHz sampling rate and 2kHz–100kHz wide frequency range. It features a 180° fully rotatable articulate microphone array, delivering ultra-high sensitivity to capture faint acoustic signals and realize precise long-distance sound source localization within 0.3–100m.
- 180° Rotatable Ergonomic & Safety Design
This Acoustic Imaging Camera adopts an industry-first 180° rotatable sensor array, allowing inspectors to maintain a natural posture for overhead and ground-level inspections, reducing shoulder and lumbar strain effectively. It keeps operators over 90cm away from energized equipment to stay outside the arc flash hazard zone, greatly improving inspection safety and ergonomic comfort.
- AI-Powered Leak Evaluation & PD Diagnosis
Paired with NaviPdM® AI inspection assistant, it provides dual professional detection modes: Leakage mode for real-time leak level and cost evaluation, and PD mode with PRPD diagram support (50/60Hz AC). It realizes automatic diagnosis of surface, floating and corona partial discharges with severity analysis, helping enterprises achieve predictive maintenance and reduce energy loss.
- Professional Acoustic Imaging Enhancement Features
It integrates exclusive T-FFTD® Acoustic Image Delay to capture instantaneous intermittent sound signals, Acoustic Image Focus for targeted noise filtering, and industrial-grade gray-scale background display to highlight sound signals. It supports single-source, multi-source and hologram imaging modes to adapt to complex on-site noise environments.
- Industrial-Grade Hardware & Reliable Performance
Built with an IP54 rugged enclosure, it features a 5-inch 1280×720 IPS LCD touchscreen with Gorilla explosion-proof protection and a 13MP industrial-grade digital camera for clear visual reference. Equipped with a 9900mAh field-replaceable lithium battery, it supports ≥4 hours of continuous operation, meeting all-day field inspection demands.
- On-Device Intelligence & Efficient Workflow

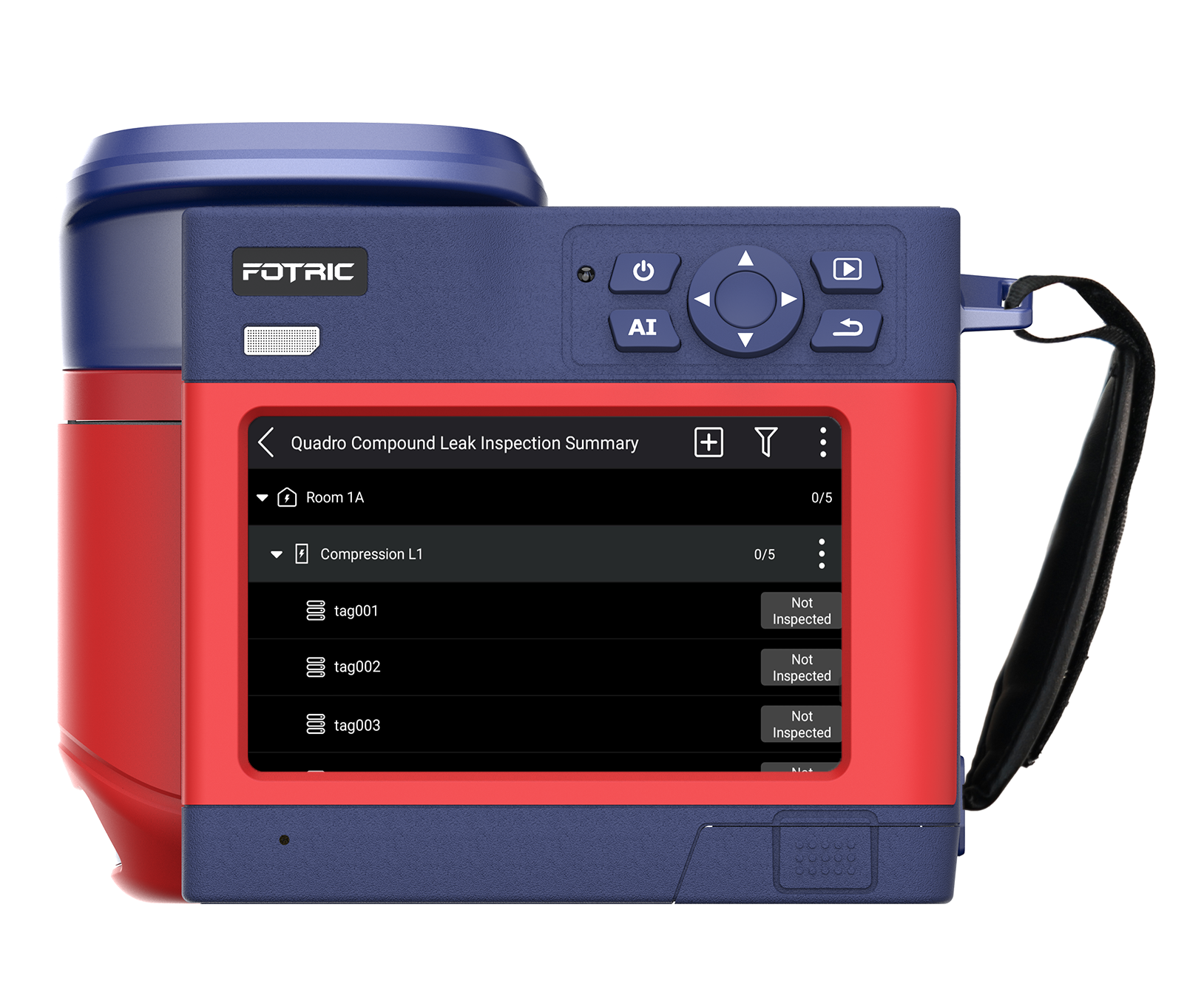

This Acoustic Imaging Camera supports on-device acoustic image and holographic video analysis, and directly generates Word/PDF inspection reports. It supports up to 1TB hot-swappable SD card storage, simplifying on-site data recording, analysis and archiving to streamline the entire inspection workflow.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Sense the Invisible. Predict the Future.
Real Sensor
- A ceramic-packaged detector, professional benchmark for accuracy and detail
- A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
- A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images
Real Focus
- A hallmark of professional imagers, makes true professional imaging achievable for every technician
- Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
- With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB
Real Professional
- With an IFOV of 1.14 mrad, it's capable of capturing finer temperature differences and achieving more accurate imaging
- 5-megapixel industrial-grade digital camera; Images will remain clear even in report
- 3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass
Six Professional Edges
T-DEF® Blend Mode
Exclusive T-DEF® visible-light temperature measurement with infrared transparency adjustable from 0%–100%, automatically aligned with IR imaging.
Ultra-close Imaging
Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.
Measurement Parameter Compensation
Full parameter correction including emissivity,ambient temperature, reflected temperature,and IR window ransmittance, ensuring researchgrade measurement accuracy.
High Refresh Rate
30 Hz high-frame-rate real-time imaging, smooth and lag-free, capturing transient temperature rises and dynamic targets.
Versatile Measurement Tools
Supports 20 measurement points, 10 measurement boxes, and 10 measurement lines, covering complex scenes far beyond comparable products.
Made for Continuous Operation
≥ 4 hours battery life, 2.5 h fast charge to 90%, supports USB-C external power for uninterrupted, all-day operation.
