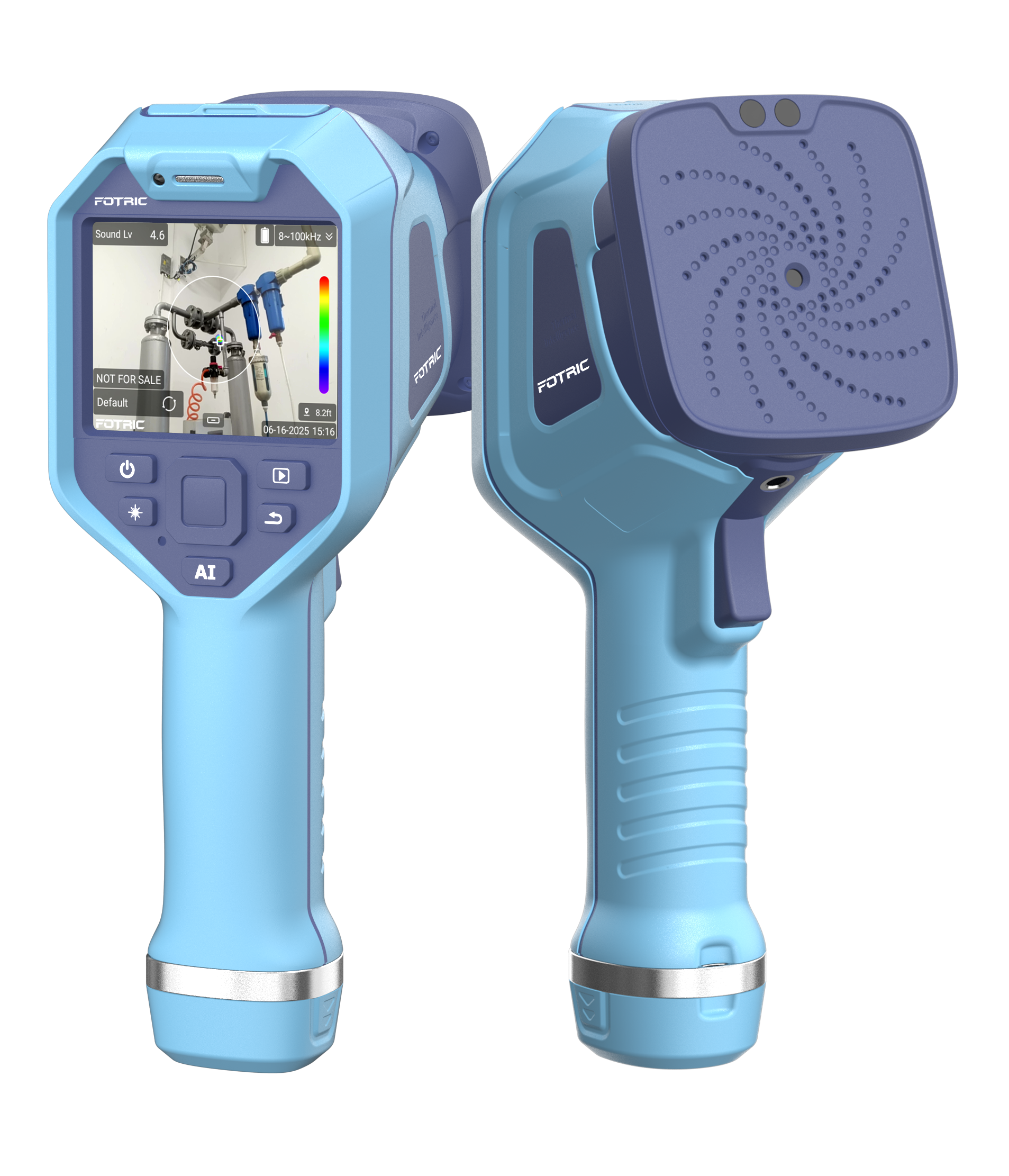

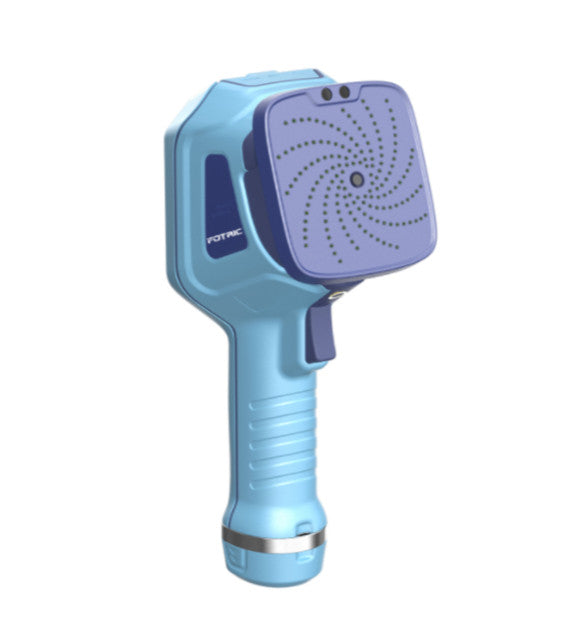

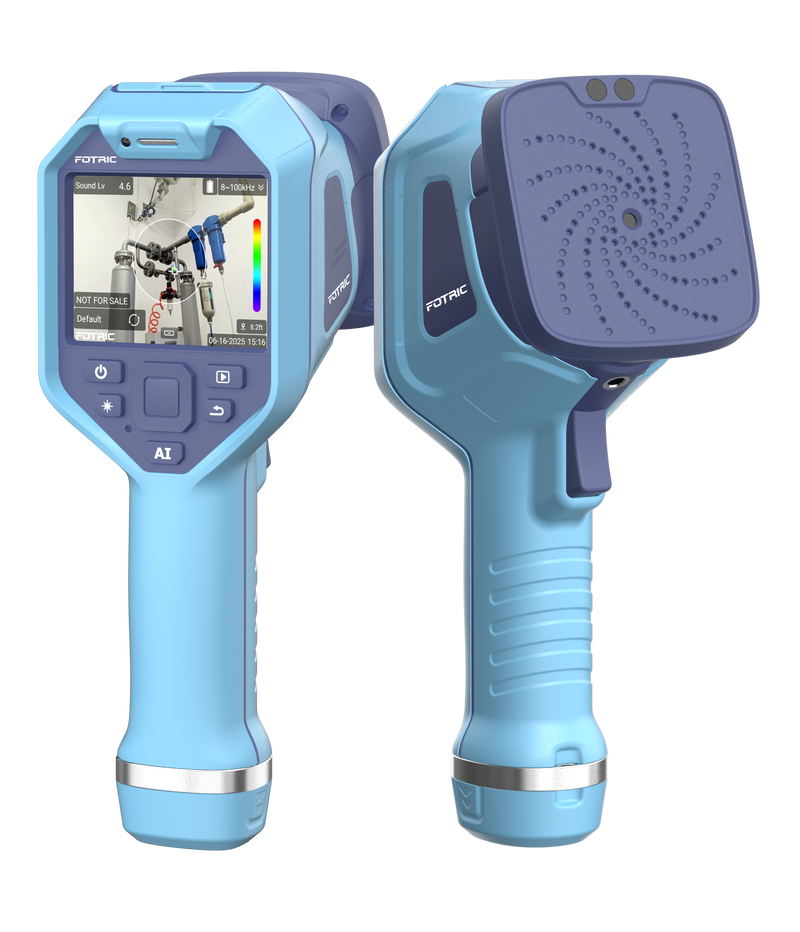

FOTRIC TD2 Acoustic Imaging Camera

Regular price: $1,234.00 USD
Sale price: $1,234.00 USD
Regular price

Shipping calculated at checkout.

Quantity:

Advanced Acoustic Imaging Technology

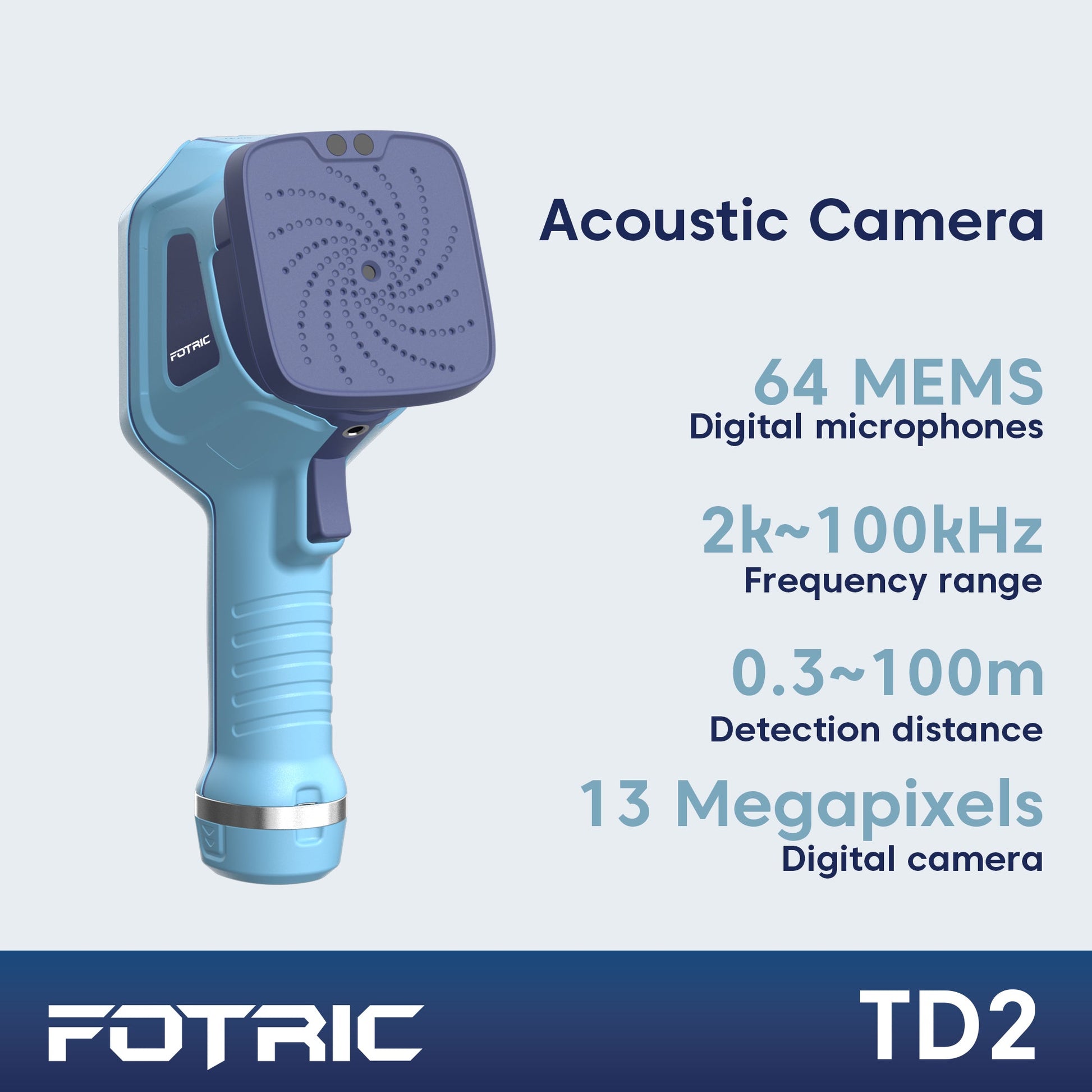

Equipped with 64 high-sensitivity MEMS digital microphones and a 66° × 52° field of view (FOV) for accurate sound source localization. Covers a wide frequency range from 2 to 100 kHz, ideal for detecting both audible and ultrasonic leaks or mechanical anomalies. Also features a 13-megapixel digital camera for detailed visual reference.
Quickly Locate Various Industrial Leaks & Vibration Problems
FOTRIC TD2 acoustic imaging camera enables compressed air leak detection, vacuum leak identification, fastener looseness checks, and seal integrity verification — all without contact or downtime. Instantly visualize abnormal sound sources in real time to improve maintenance efficiency and prevent costly failures.
Acoustic Image Focus & Sound Pressure Level Measurement
Combines adaptive dynamic noise reduction algorithms to achieve focused localization of sound sources. By combining acoustic images with dB-level data output, it is well-suited for locating and diagnosing a wide range of industrial sound sources.
High-Resolution Touch Screen & Multiple Display Modes
The 3.5" high-resolution IPS touchscreen (640 × 480), protected by tough Gorilla Glass, supports single-source, multi-source, and hologram modes. Instantly overlay sound pressure data on visible-light images for faster, more intuitive diagnostics.
Portable & Durable Design
Lightweight (770 g) and rugged (IP54 rated, 2 m drop resistance). The FOTRIC TD2 acoustic imager includes a 5000 mAh rechargeable battery for 4+ hours of continuous operation, ideal for field inspections in industrial, HVAC, or energy sectors.

FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.

FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.

Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.

FOTRIC provides professional technical support, firmware updates, and continuous software improvements.

Free Shipping

30-Day Return Policy

2-Year Warranty

24/7 Customer Support

Sense the Invisible. Predict the Future.

FOTRIC’s advanced thermal and acoustic imaging solutions empower industries to detect faults early, improve safety, and optimize performance with precision technology.

Real Sensor

A ceramic-packaged detector, professional benchmark for accuracy and detail
A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images

Real Focus

A hallmark of professional imagers, makes true professional imaging achievable for every technician
Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB

Real Professional

With an IFOV of 1.14 mrad, it's capable of capturing finer temperature differences and achieving more accurate imaging
5-megapixel industrial-grade digital camera; Images will remain clear even in report
3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass

Six Professional Edges

T-DEF® Blend Mode

Exclusive T-DEF® visible-light temperature measurement with infrared transparency adjustable from 0%–100%, automatically aligned with IR imaging.

Ultra-close Imaging

Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.

Measurement Parameter Compensation

Full parameter correction including emissivity,ambient temperature, reflected temperature,and IR window ransmittance, ensuring researchgrade measurement accuracy.
