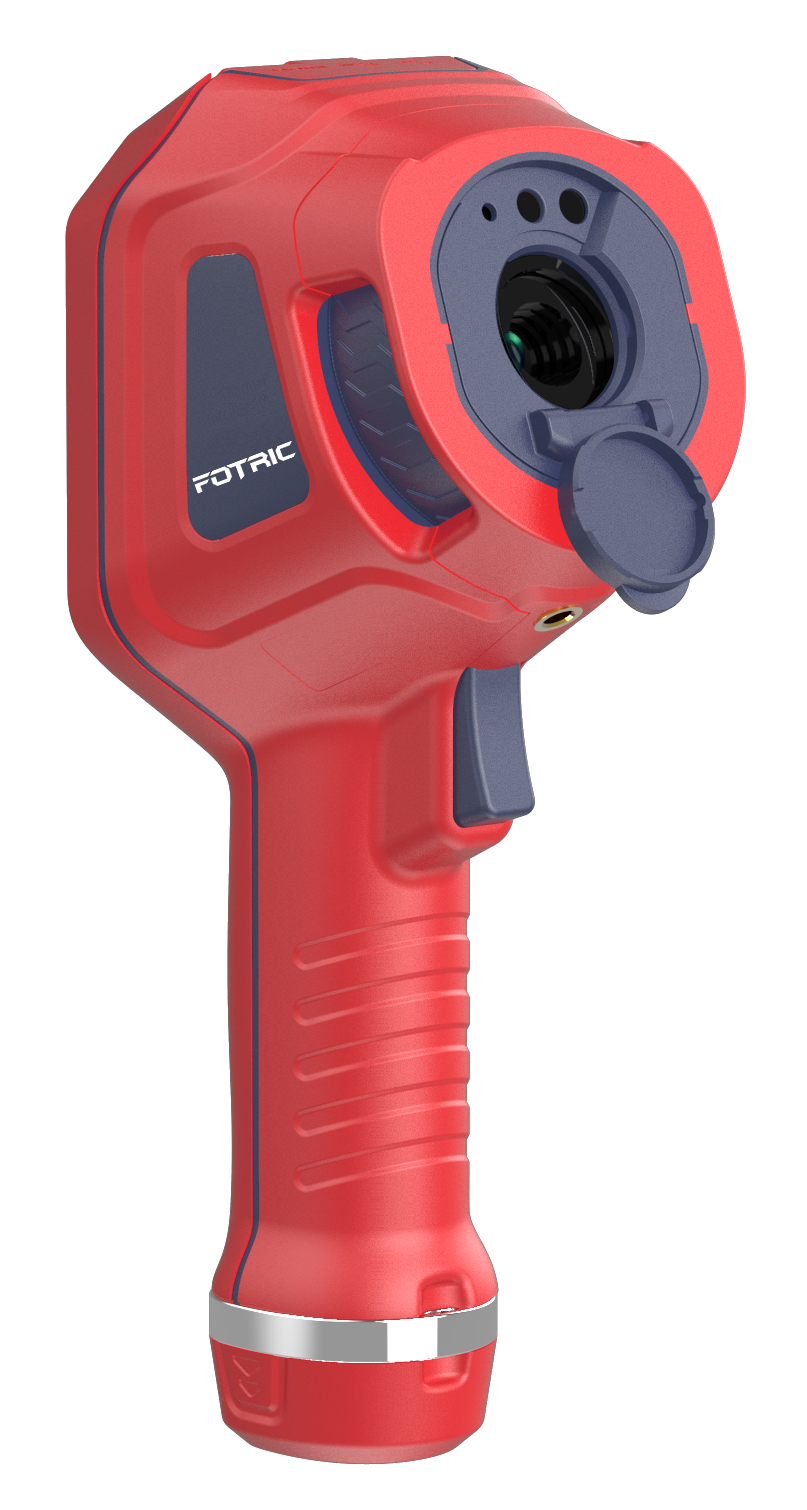

FOTRIC C5 Thermal Imaging Camera
- High-Performance Compact Thermal Imaging
FOTRIC C5 Thermal Imaging Camera is a high-performance compact thermal imager for professional facility maintenance and industrial inspections. It features 384×288 infrared resolution and ＜40mK thermal sensitivity (NETD), presenting clearer thermal details with super resolution up to 768×576 for more accurate fault identification.
- Dual Focus & Wide-Angle Lens
Adopts manual focus + 0.5m focus-free dual mode for flexible operation in different scenarios, equipped with a 49°×37° wide-angle lens to enhance inspection coverage. It supports full radiometric video recording to retain complete temperature data for in-depth analysis.
- Lightweight & Industrial Rugged
Ultra-lightweight at 730g for comfortable long-time holding, with IP54 protection and 2-meter drop resistance to ensure stable performance in harsh environments. The 5000mAh large-capacity battery delivers ≥4 hours of continuous operation for efficient field work.
- Smart Connectivity & Software Ecosystem
Intuitive Android interface with Wi-Fi & Bluetooth for fast data transfer, supporting QR/barcode tagging and multi-format annotation. Fully compatible with AnalyzIR and IRExplorer software, it enables professional report generation, remote control and real-time streaming for streamlined maintenance workflows.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Sense the Invisible. Predict the Future.
Real Sensor
- A ceramic-packaged detector, professional benchmark for accuracy and detail
- A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
- A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images
Real Focus
- A hallmark of professional imagers, makes true professional imaging achievable for every technician
- Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
- With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB
Real Professional
- With an IFOV of 1.14 mrad, it's capable of capturing finer temperature differences and achieving more accurate imaging
- 5-megapixel industrial-grade digital camera; Images will remain clear even in report
- 3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass
Six Professional Edges
T-DEF® Blend Mode
Exclusive T-DEF® visible-light temperature measurement with infrared transparency adjustable from 0%–100%, automatically aligned with IR imaging.
Ultra-close Imaging
Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.
Measurement Parameter Compensation
Full parameter correction including emissivity,ambient temperature, reflected temperature,and IR window ransmittance, ensuring researchgrade measurement accuracy.
High Refresh Rate
30 Hz high-frame-rate real-time imaging, smooth and lag-free, capturing transient temperature rises and dynamic targets.
Versatile Measurement Tools
Supports 20 measurement points, 10 measurement boxes, and 10 measurement lines, covering complex scenes far beyond comparable products.
Made for Continuous Operation
≥ 4 hours battery life, 2.5 h fast charge to 90%, supports USB-C external power for uninterrupted, all-day operation.
