FOTRIC P5Mix Imaging Camera
- Regular price
- $12,999.00 USD
- Sale price
- $12,999.00 USD
- Regular price
-
- Advanced 2-in-1 Thermal & Acoustic Imaging Technology

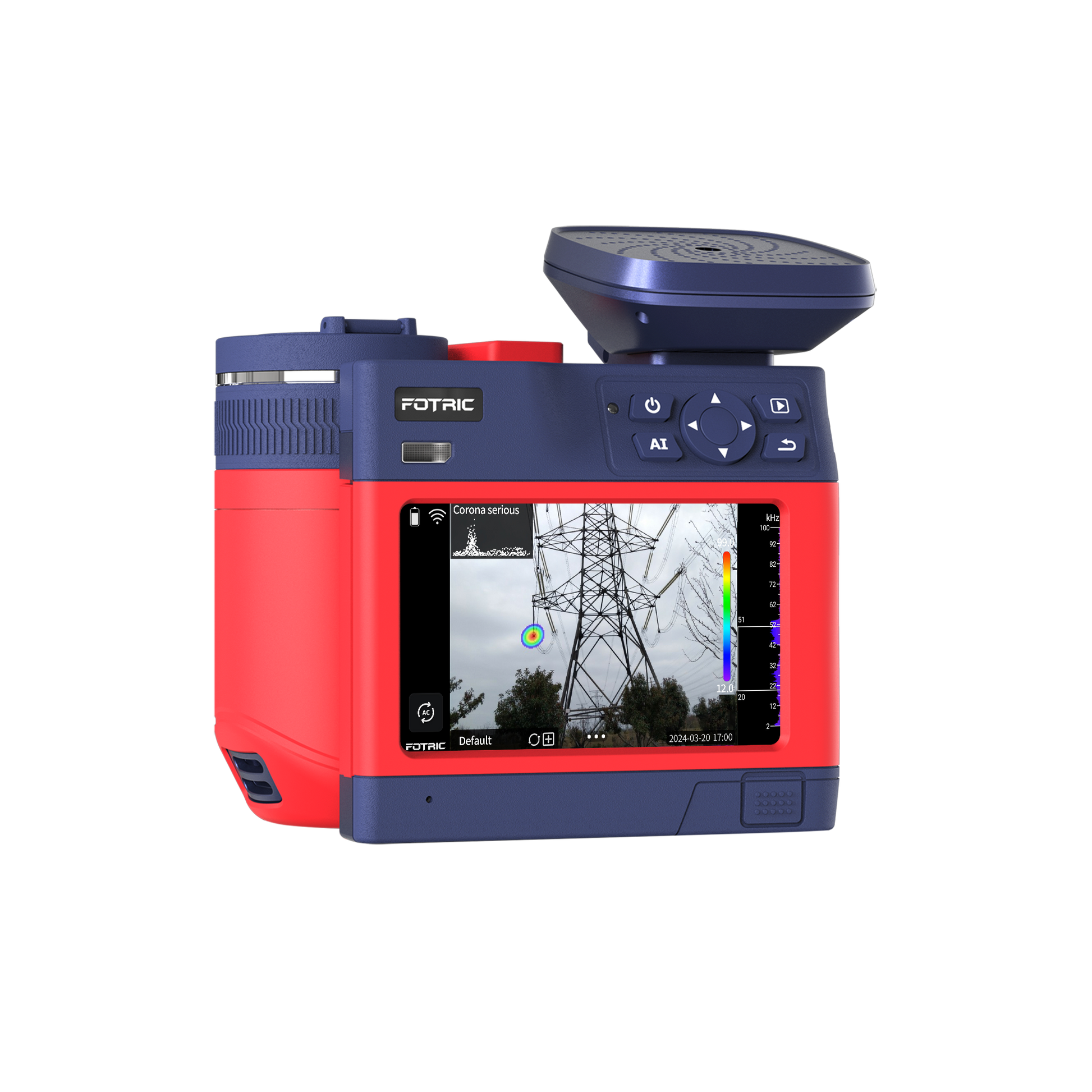

FOTRIC P5Mix Imaging Camera integrates high-definition thermal imaging and professional acoustic detection into one rugged inspection tool. It comes with 384×288 IR resolution for clear thermal visualization and 140 high-sensitivity MEMS digital microphones for accurate sound source localization. Supporting IR, AC, and MiX display modes, it simultaneously shows thermal distribution and acoustic signals to deliver full-perspective equipment fault analysis.
- AI-Powered Leak & Partial Discharge Diagnosis
This 2-in-1 imaging camera performs non-contact detection of gas leaks and intelligent partial discharge (PD) diagnosis, covering surface discharge, floating discharge, and corona discharge with severity evaluation. It also supports leakage level, flow rate, and cost assessment, helping maintenance teams quickly identify hidden risks, reduce unplanned downtime, and lower operational losses.
- TurboFocus® Smart Focus & Multi-Mode Display
Adopts the professional TurboFocus® system that supports thermal contrast AF, laser-assisted AF, continuous AF, touch AF, and manual focus. It provides multiple thermal display modes (Thermal/Digital/PIP/T-DEF® blend) and acoustic display modes (Single/Multi/Hologram), making fault location more intuitive and efficient for industrial inspection scenarios.
- Industrial-Grade Rugged & User-Friendly Design
Built with an IP54 rugged enclosure, the camera features a 5-inch IPS LCD touchscreen (1280×720) with Gorilla Anti-Explosion protection. It is equipped with a 9900mAh field-replaceable lithium battery for up to 4 hours of continuous operation, and supports voice/text annotation to simplify on-site data recording for field inspectors.
- On-Board Analysis & Professional Compatibility
The camera supports on-device analysis and is compatible with FOTRIC AnalyzIR professional software for in-depth data processing. It offers a wide temperature measurement range, high measurement accuracy, and multiple language support, making it widely used in electrical maintenance, leak detection, predictive maintenance, and industrial equipment inspection.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Sense the Invisible. Predict the Future.
Real Sensor
- A ceramic-packaged detector, professional benchmark for accuracy and detail
- A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
- A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images
Real Focus
- A hallmark of professional imagers, makes true professional imaging achievable for every technician
- Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
- With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB
Real Professional
- With an IFOV of 1.14 mrad, it's capable of capturing finer temperature differences and achieving more accurate imaging
- 5-megapixel industrial-grade digital camera; Images will remain clear even in report
- 3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass
Six Professional Edges
T-DEF® Blend Mode
Exclusive T-DEF® visible-light temperature measurement with infrared transparency adjustable from 0%–100%, automatically aligned with IR imaging.
Ultra-close Imaging
Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.
Measurement Parameter Compensation
Full parameter correction including emissivity,ambient temperature, reflected temperature,and IR window ransmittance, ensuring researchgrade measurement accuracy.
High Refresh Rate
30 Hz high-frame-rate real-time imaging, smooth and lag-free, capturing transient temperature rises and dynamic targets.
Versatile Measurement Tools
Supports 20 measurement points, 10 measurement boxes, and 10 measurement lines, covering complex scenes far beyond comparable products.
Made for Continuous Operation
≥ 4 hours battery life, 2.5 h fast charge to 90%, supports USB-C external power for uninterrupted, all-day operation.
